starrocks 聚合查询存在重复key

[alian]

【详述】聚合查询会存在 重复分组，排除分组字符存在空白字符问题。修改时间范围可能正常，不会存在重复key。
【背景】执行聚合分析SQL，如下：

SELECT
	first_prop_dim AS keyword,
	SUM (count) AS clause_cnt
FROM
	(
	SELECT
		first_prop_dim,
		emotion_term,
		count(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS "count"
	FROM
		view_comment_clause clause
	WHERE
		clause.goods_id IN ('684005614244')
		AND clause.first_prop_dim NOT IN (
                        '消费者特征',
                        '购买行为',
                        '使用情况',
                        '品牌印象',
                        '回购意愿',
                        '推荐意愿',
                        '整体评价',
                        '产品对比',
                        '其他维度'
                )
		AND (clause.comment_time BETWEEN '2023-03-01' AND '2023-03-31')
		AND first_prop_dim IS NOT NULL
	GROUP BY
		first_prop_dim
		,emotion_term
) arr
GROUP BY
	first_prop_dim
;

【业务影响】SQL 聚合查询结果不对。
【StarRocks版本 2.5.2】
【集群规模】1fe+3be（fe与be混部）
【机器信息】CPU虚拟核/内存：8C/64G
【联系方式】421231244@qq.com
【附件】

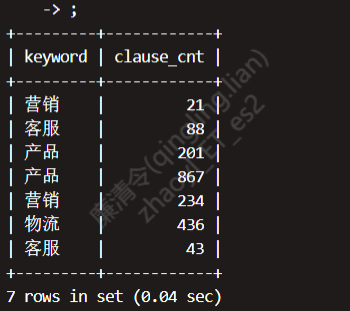

查询结果存在重复的分组如下：

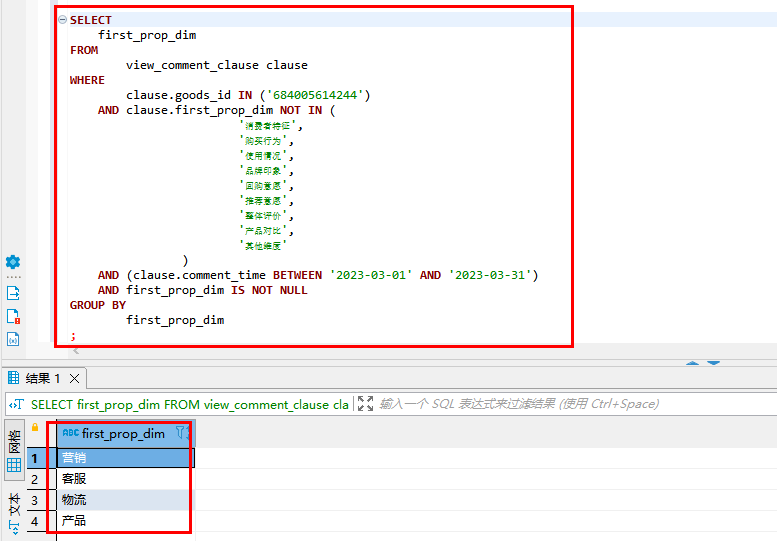

排除空白字符问题：

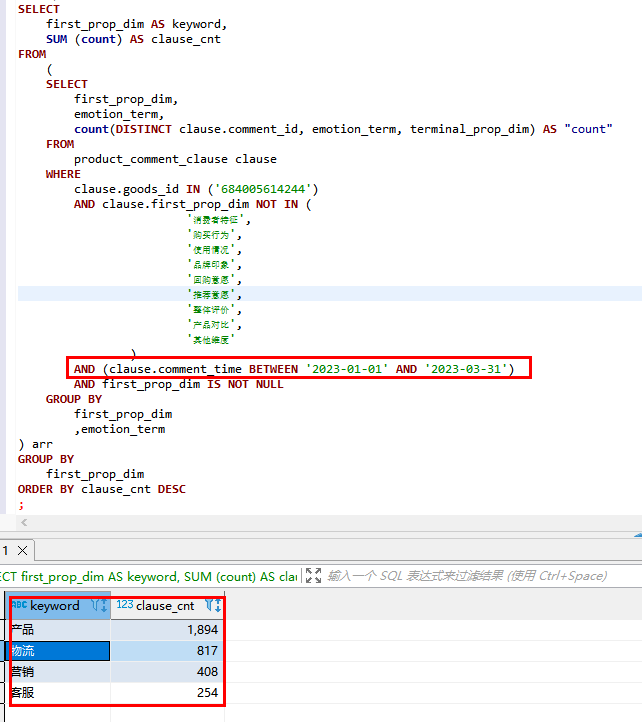

修改时间范围：结果确正常了。

[LIANGCHAOHUA]

您的意思是条件 (clause.comment_time BETWEEN ‘2023-03-01’ AND ‘2023-03-31’)时，应该显示产品，物流，营销，客户4个。不应该显示那么多行，是这个意思吗？

[alian]

是的，我是聚合分组查询，不应该存在分组相同的两行。

[LIANGCHAOHUA]

SELECT
first_prop_dim,
emotion_term,
count(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS “count”
FROM
view_comment_clause clause
WHERE
clause.goods_id IN (‘684005614244’)
AND clause.first_prop_dim NOT IN (
‘消费者特征’,
‘购买行为’,
‘使用情况’,
‘品牌印象’,
‘回购意愿’,
‘推荐意愿’,
‘整体评价’,
‘产品对比’,
‘其他维度’
)
AND (clause.comment_time BETWEEN ‘2023-03-01’ AND ‘2023-03-31’)
AND first_prop_dim IS NOT NULL
GROUP BY
first_prop_dim
,emotion_term

SELECT
first_prop_dim,
count(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS “count”
FROM
view_comment_clause clause
WHERE
clause.goods_id IN (‘684005614244’)
AND clause.first_prop_dim NOT IN (
‘消费者特征’,
‘购买行为’,
‘使用情况’,
‘品牌印象’,
‘回购意愿’,
‘推荐意愿’,
‘整体评价’,
‘产品对比’,
‘其他维度’
)
AND (clause.comment_time BETWEEN ‘2023-03-01’ AND ‘2023-03-31’)
AND first_prop_dim IS NOT NULL
GROUP BY
first_prop_dim

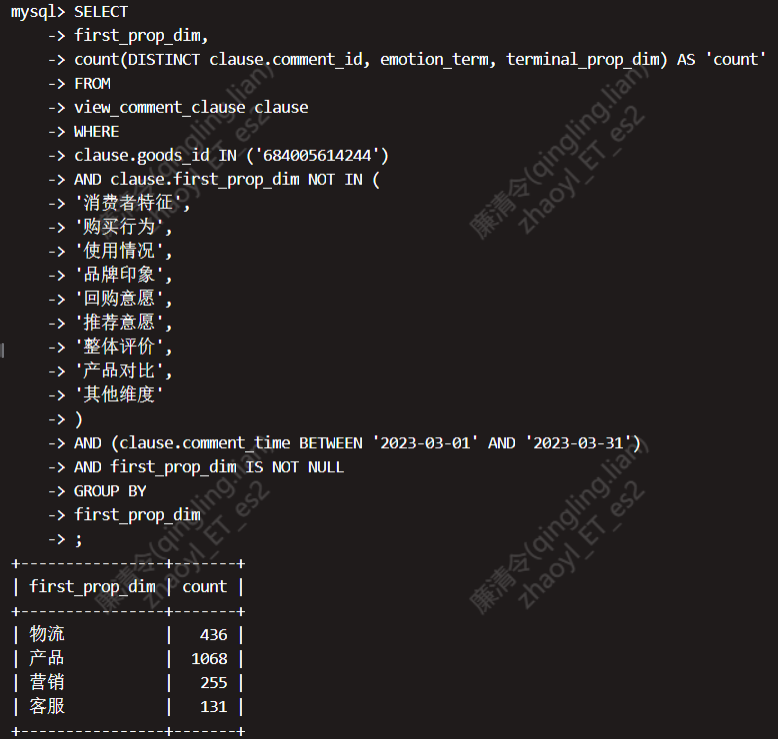

这两个SQL执行结果看一下。

[alian]

@LIANGCHAOHUA

SELECT
	first_prop_dim,
	emotion_term,
	count(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS 'count'
FROM
	view_comment_clause clause
WHERE
	clause.goods_id IN ('684005614244')
	AND clause.first_prop_dim NOT IN (
		'消费者特征',
		'购买行为',
		'使用情况',
		'品牌印象',
		'回购意愿',
		'推荐意愿',
		'整体评价',
		'产品对比',
		'其他维度'
		)
	AND (clause.comment_time BETWEEN '2023-03-01' AND '2023-03-31')
	AND first_prop_dim IS NOT NULL
GROUP BY
	first_prop_dim,
	emotion_term

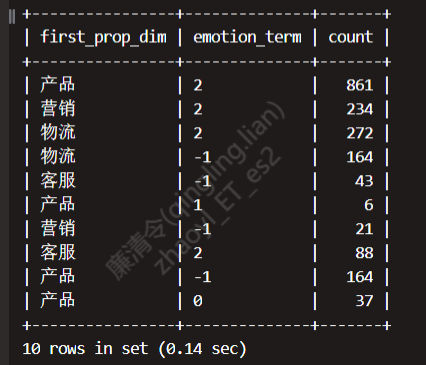

执行结果分别如下：

[LIANGCHAOHUA]

请问存在重复key是指什么？

[LIANGCHAOHUA]

SELECT
first_prop_dim AS keyword,
SUM (count) AS clause_cnt
FROM
(
SELECT
first_prop_dim,
emotion_term,
count(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS “count”
FROM
view_comment_clause clause
WHERE
clause.goods_id IN (‘684005614244’)
AND clause.first_prop_dim NOT IN (
‘消费者特征’,
‘购买行为’,
‘使用情况’,
‘品牌印象’,
‘回购意愿’,
‘推荐意愿’,
‘整体评价’,
‘产品对比’,
‘其他维度’
)
AND (clause.comment_time BETWEEN ‘2023-03-01’ AND ‘2023-03-31’)
AND first_prop_dim IS NOT NULL
GROUP BY
first_prop_dim
,emotion_term
) arr
GROUP BY
first_prop_dim
;
这个结果执行一下。

[LIANGCHAOHUA]

SELECT
arr.first_prop_dim AS keyword,
SUM (arr.count) AS clause_cnt
FROM
(
SELECT
first_prop_dim,
emotion_term,
count(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS “count”
FROM
view_comment_clause clause
WHERE
clause.goods_id IN (‘684005614244’)
AND clause.first_prop_dim NOT IN (
‘消费者特征’,
‘购买行为’,
‘使用情况’,
‘品牌印象’,
‘回购意愿’,
‘推荐意愿’,
‘整体评价’,
‘产品对比’,
‘其他维度’
)
AND (clause.comment_time BETWEEN ‘2023-03-01’ AND ‘2023-03-31’)
AND first_prop_dim IS NOT NULL
GROUP BY
first_prop_dim
,emotion_term
) arr
GROUP BY
arr.first_prop_dim
;
这个也试一下

[alian]

@alian

SELECT
first_prop_dim AS keyword,
SUM (count) AS clause_cnt
FROM
(
SELECT
first_prop_dim,
emotion_term,
count(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS “count”
FROM
view_comment_clause clause
WHERE
clause.goods_id IN (‘684005614244’)
AND clause.first_prop_dim NOT IN (
‘消费者特征’,
‘购买行为’,
‘使用情况’,
‘品牌印象’,
‘回购意愿’,
‘推荐意愿’,
‘整体评价’,
‘产品对比’,
‘其他维度’
)
AND (clause.comment_time BETWEEN ‘2023-03-01’ AND ‘2023-03-31’)
AND first_prop_dim IS NOT NULL
GROUP BY
first_prop_dim
,emotion_term
) arr
GROUP BY
first_prop_dim
;

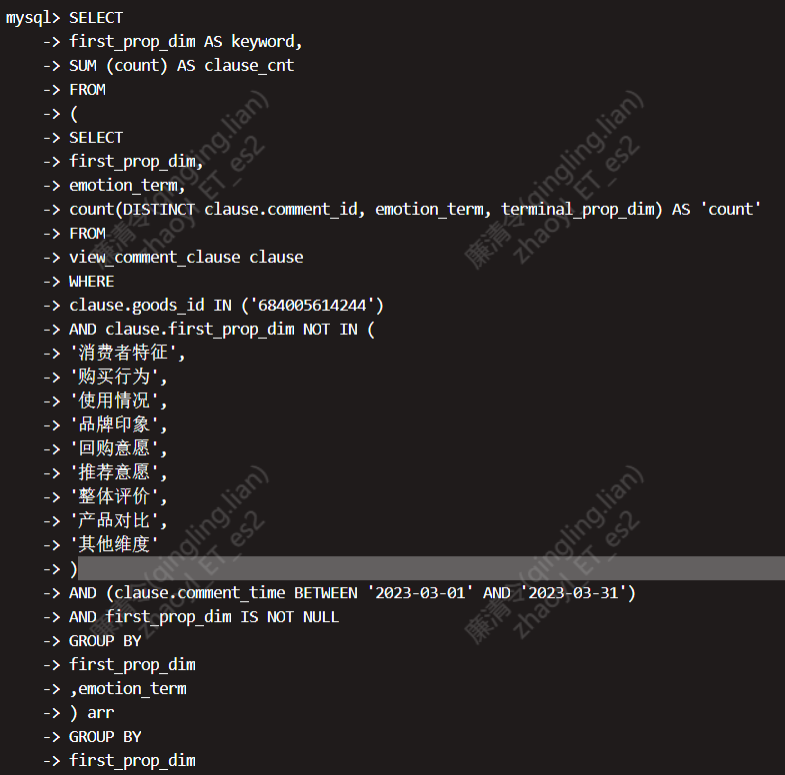

执行如下SQL:

结果如下：

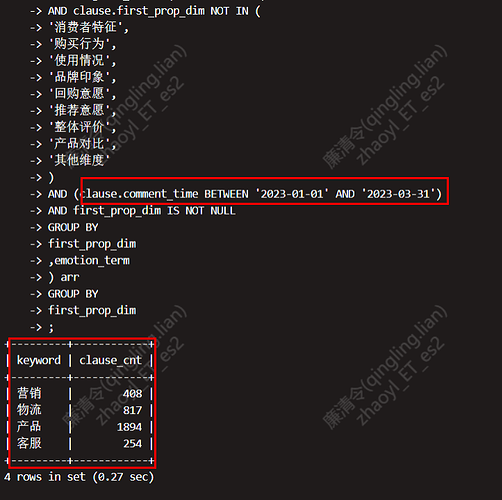

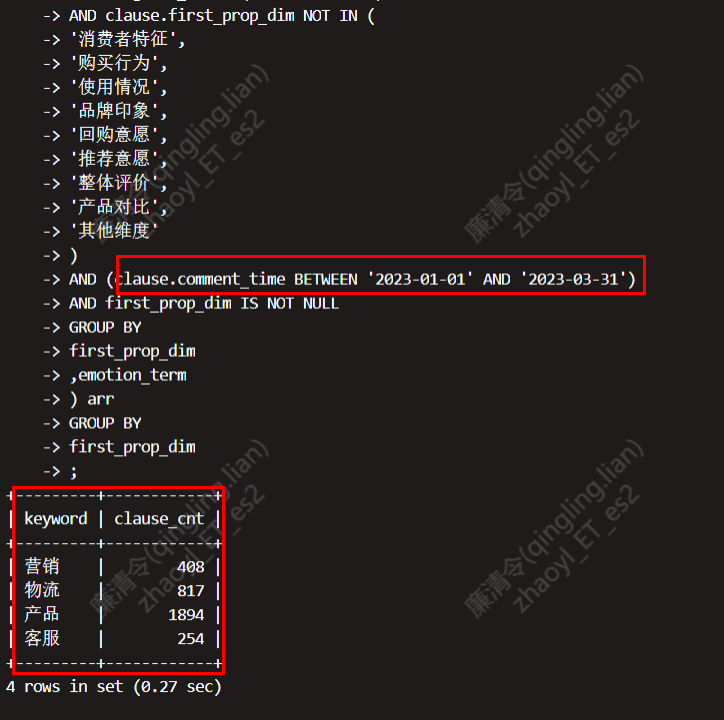

改变查询条件，又会正常，比如改了查询时间范围。

[alian]

不知道有没有明白我的意思？

[LIANGCHAOHUA]

ok，我们排查一下。

[LIANGCHAOHUA]

麻烦提供这两个SQL的explain costs，谢谢！

[alian]

EXPLAIN
SELECT
first_prop_dim AS keyword,
SUM (COUNT) AS clause_cnt
FROM
(
SELECT
first_prop_dim,
emotion_term,
COUNT(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS 'count'
FROM
view_comment_clause clause
WHERE
clause.goods_id IN ('684005614244')
AND clause.first_prop_dim NOT IN (
'消费者特征',
'购买行为',
'使用情况',
'品牌印象',
'回购意愿',
'推荐意愿',
'整体评价',
'产品对比',
'其他维度'
)
AND (clause.comment_time BETWEEN '2023-03-01' AND '2023-03-31')
AND first_prop_dim IS NOT NULL
GROUP BY
first_prop_dim
,emotion_term
) arr
GROUP BY
first_prop_dim
;

Explain String
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PLAN FRAGMENT 0
 OUTPUT EXPRS:5: first_prop_dim | 27: sum
  PARTITION: HASH_PARTITIONED: 5: first_prop_dim, 12: emotion_term

  RESULT SINK

  7:AGGREGATE (update finalize)
  |  output: sum(26: count)
  |  group by: 5: first_prop_dim
  |
  6:Project
  |  <slot 5> : 5: first_prop_dim
  |  <slot 26> : 26: count
  |
  5:AGGREGATE (update finalize)
  |  output: count(if(2: comment_id IS NULL, NULL, if(12: emotion_term IS NULL, NULL, 8: terminal_prop_dim)))
  |  group by: 5: first_prop_dim, 12: emotion_term
  |
  4:AGGREGATE (merge serialize)
  |  group by: 2: comment_id, 5: first_prop_dim, 8: terminal_prop_dim, 12: emotion_term
  |
  3:EXCHANGE

PLAN FRAGMENT 1
 OUTPUT EXPRS:
  PARTITION: RANDOM

  STREAM DATA SINK
    EXCHANGE ID: 03
    HASH_PARTITIONED: 5: first_prop_dim, 12: emotion_term

  2:AGGREGATE (update serialize)
  |  STREAMING
  |  group by: 2: comment_id, 5: first_prop_dim, 8: terminal_prop_dim, 12: emotion_term
  |
  1:Project
  |  <slot 2> : 2: comment_id
  |  <slot 5> : 5: first_prop_dim
  |  <slot 8> : 8: terminal_prop_dim
  |  <slot 12> : 12: emotion_term
  |
  0:OlapScanNode
     TABLE: view_comment_clause
     PREAGGREGATION: ON
     PREDICATES: 1: goods_id = 684005614244, 5: first_prop_dim NOT IN ('消费者特征', '购买行为', '使用情况', '品牌印象', '回购意愿', '推荐意愿', '整体评价', '产品对比', '其他维度'), 3: comment_time <= '2023-03-31 00:00:00', 5: first_prop_dim IS NOT NULL
     partitions=1/108
     rollup: view_comment_clause
     tabletRatio=1/6
     tabletList=704033
     cardinality=2619980
     avgRowSize=6.0
     numNodes=0

[alian]

EXPLAIN
SELECT
first_prop_dim AS keyword,
SUM (COUNT) AS clause_cnt
FROM
(
SELECT
first_prop_dim,
emotion_term,
COUNT(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS 'count'
FROM
view_comment_clause clause
WHERE
clause.goods_id IN ('684005614244')
AND clause.first_prop_dim NOT IN (
'消费者特征',
'购买行为',
'使用情况',
'品牌印象',
'回购意愿',
'推荐意愿',
'整体评价',
'产品对比',
'其他维度'
)
AND (clause.comment_time BETWEEN '2023-01-01' AND '2023-03-31')
AND first_prop_dim IS NOT NULL
GROUP BY
first_prop_dim
,emotion_term
) arr
GROUP BY
first_prop_dim
;
Explain String
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PLAN FRAGMENT 0
 OUTPUT EXPRS:5: first_prop_dim | 27: sum
  PARTITION: UNPARTITIONED

  RESULT SINK

  10:EXCHANGE

PLAN FRAGMENT 1
 OUTPUT EXPRS:
  PARTITION: HASH_PARTITIONED: 5: first_prop_dim

  STREAM DATA SINK
    EXCHANGE ID: 10
    UNPARTITIONED

  9:AGGREGATE (merge finalize)
  |  output: sum(27: sum)
  |  group by: 5: first_prop_dim
  |
  8:EXCHANGE

PLAN FRAGMENT 2
 OUTPUT EXPRS:
  PARTITION: HASH_PARTITIONED: 5: first_prop_dim, 12: emotion_term

  STREAM DATA SINK
    EXCHANGE ID: 08
    HASH_PARTITIONED: 5: first_prop_dim

  7:AGGREGATE (update serialize)
  |  STREAMING
  |  output: sum(26: count)
  |  group by: 5: first_prop_dim
  |
  6:Project
  |  <slot 5> : 5: first_prop_dim
  |  <slot 26> : 26: count
  |
  5:AGGREGATE (update finalize)
  |  output: count(if(2: comment_id IS NULL, NULL, if(12: emotion_term IS NULL, NULL, 8: terminal_prop_dim)))
  |  group by: 5: first_prop_dim, 12: emotion_term
  |
  4:AGGREGATE (merge serialize)
  |  group by: 2: comment_id, 5: first_prop_dim, 8: terminal_prop_dim, 12: emotion_term
  |
  3:EXCHANGE

PLAN FRAGMENT 3
 OUTPUT EXPRS:
  PARTITION: RANDOM

  STREAM DATA SINK
    EXCHANGE ID: 03
    HASH_PARTITIONED: 5: first_prop_dim, 12: emotion_term

  2:AGGREGATE (update serialize)
  |  STREAMING
  |  group by: 2: comment_id, 5: first_prop_dim, 8: terminal_prop_dim, 12: emotion_term
  |
  1:Project
  |  <slot 2> : 2: comment_id
  |  <slot 5> : 5: first_prop_dim
  |  <slot 8> : 8: terminal_prop_dim
  |  <slot 12> : 12: emotion_term
  |
  0:OlapScanNode
     TABLE: view_comment_clause
     PREAGGREGATION: ON
     PREDICATES: 1: goods_id = 684005614244, 5: first_prop_dim NOT IN ('消费者特征', '购买行为', '使用情况', '品牌印象', '回购意愿', '推荐意愿', '整体评价', '产品对比', '其他维度'), 3: comment_time <= '2023-03-31 00:00:00', 5: first_prop_dim IS NOT NULL
     partitions=3/108
     rollup: view_comment_clause
     tabletRatio=3/18
     tabletList=703985,704009,704033
     cardinality=7960315
     avgRowSize=6.0
     numNodes=0

[ZiheLiu]

现在还能复现吗？辛苦再发下两个 SQL 的如下信息吧：

• 执行的 profile
• explain costs SQL

[alian]

《profile 分析》

[alian]

这个问题有排查出来什么问题嘛？

[ZiheLiu]

排查出来了，是一个已知问题，预计 2.5.5 修复。
查询只命中一个 tablet 时会有问题，针对这个 SQL 设置 set new_planner_agg_stage = 4 可以暂时绕过这个问题：

SELECT /*+ SET_VAR(new_planner_agg_stage=4) */
	first_prop_dim AS keyword,
	SUM (count) AS clause_cnt
FROM
-- ...

[alian]

set new_planner_agg_stage = 4;
SELECT
	first_prop_dim AS keyword,
	SUM (count) AS clause_cnt
FROM
	(
	SELECT
		first_prop_dim,
		emotion_term,
		count(DISTINCT clause.comment_id, emotion_term, terminal_prop_dim) AS "count"
	FROM
		view_comment_clause clause
	WHERE
		clause.goods_id IN ('647149341429')
		-- category_name = '面膜'
		AND clause.first_prop_dim NOT IN (
                        '消费者特征',
                        '购买行为',
                        '使用情况',
                        '品牌印象',
                        '回购意愿',
                        '推荐意愿',
                        '整体评价',
                        '产品对比',
                        '其他维度'
                )
		AND (clause.comment_time BETWEEN '2023-03-01' AND '2023-03-31')
		AND first_prop_dim IS NOT NULL
	GROUP BY
		first_prop_dim,
		emotion_term
) arr
GROUP BY
	first_prop_dim
ORDER BY
	clause_cnt DESC
;

类似这样去执行SQL?

[ZiheLiu]

是的，只是针对这个 SQL 设置 new_planner_agg_stage=4，其他 SQL 依然保持 new_planner_agg_stage=0 即可。
