tidb jdbc catalog报错

乘风破浪 · 2026年04月18日 03:44

为了更快的定位您的问题，请提供以下信息，谢谢
【详述】问题详细描述
【背景】创建tidb jdbc catalog：
CREATE EXTERNAL CATALOG tidb_catalog
PROPERTIES
(
“type”=“jdbc”,
“user”=“",
“password”="h",
“jdbc_uri”="jdbc:mysql://10...:63306?allowPublicKeyRetrieval=true&useMysqlMetadata=true”,
“driver_url”=“file:///opt/starrocks/fe/lib/mysql-connector-j-8.0.33.jar”,
“driver_class”=“com.mysql.cj.jdbc.Driver”
);

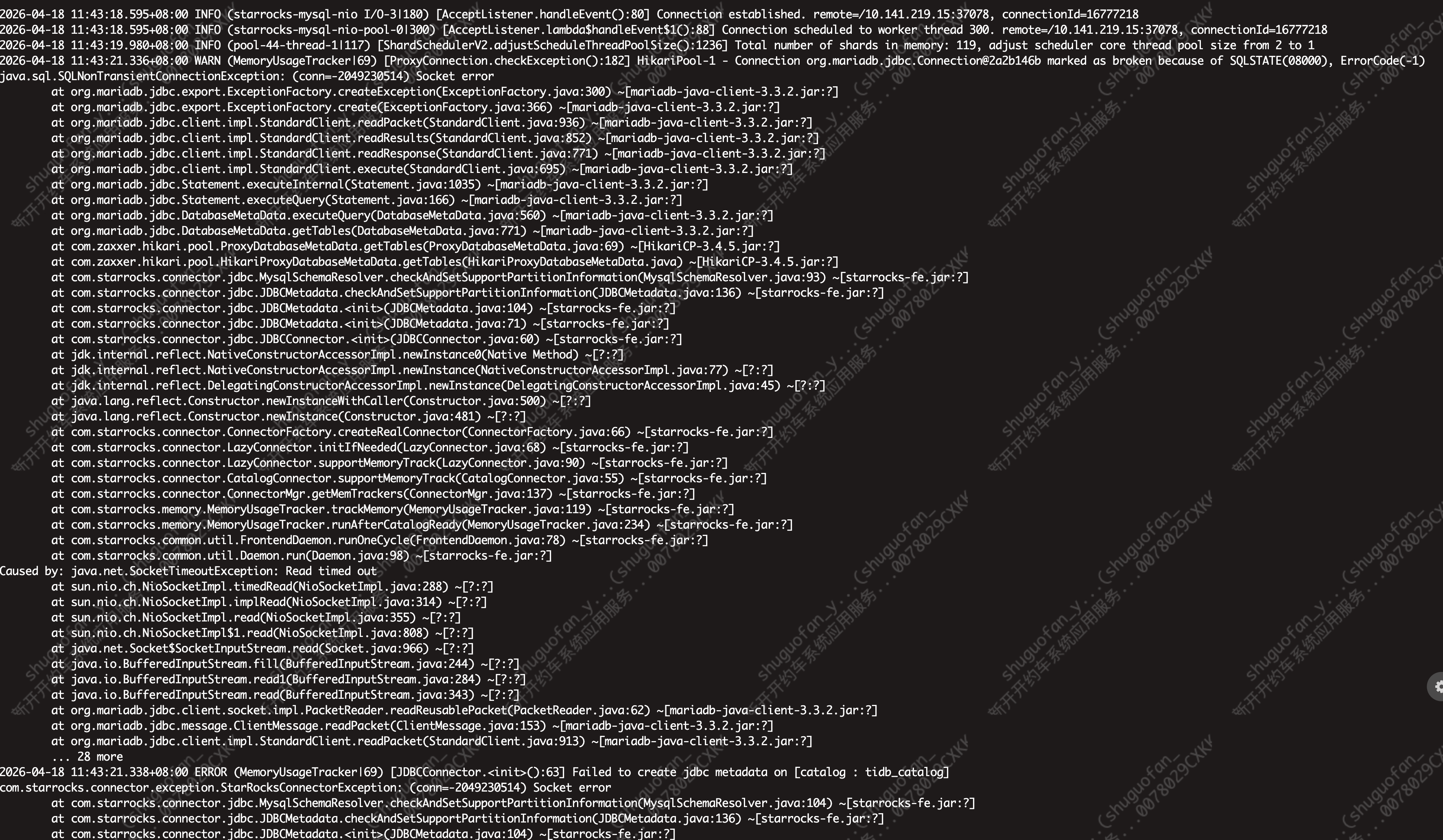

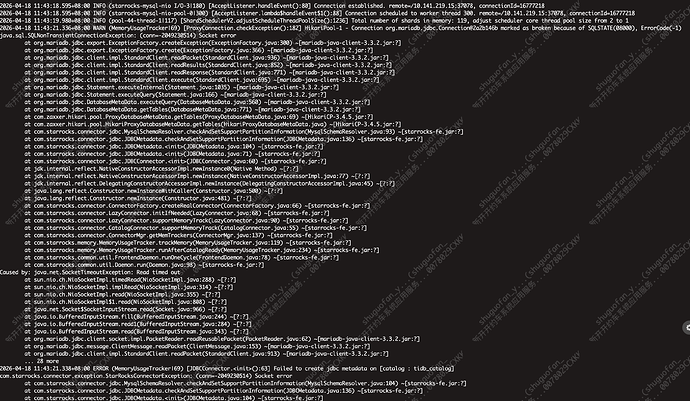

创建的时候,fe.log日志报错：

已经在docker容器里使用mysql客户端可以正常连接，

【业务影响】否
【是否存算分离】是
【StarRocks版本】fe-ubuntu:4.0-latest
【集群规模】1fe+1be
【机器信息】单台机器16C/64G，通过docker-compose部署
【联系方式】78347793@qq.com
【附件】

fe.log/beINFO/相应截图
慢查询：
- Profile信息
- 并行度：show variables like ‘%parallel_fragment_exec_instance_num%’;
- pipeline是否开启：show variables like ‘%pipeline%’;
- be节点cpu和内存使用率截图
查询报错：
- query_dump，怎么获取query_dump文件
be crash
- be.out
外表查询报错
- be.out和fe.warn.log

SharkaLaga · 2026年04月20日 01:51

直接报错是网络连接问题

1、尝试添加超时参数socketTimeout=30000&connectTimeout=30000

2、获取container真实IP

docker inspect tidb-server | grep IPAddress

进入starrocks容器通过telnet tidb-server-ip 63306检查网络连通性

3、发一下compose脚本看一下配置

乘风破浪 · 2026年04月21日 05:46

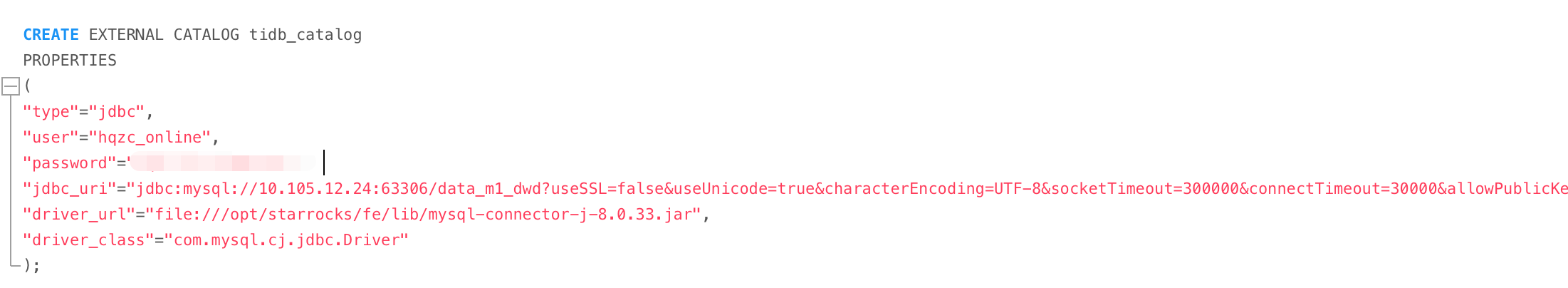

1、增加socketTimeout=30000&connectTimeout=30000，还是报错，catalog语句见截图

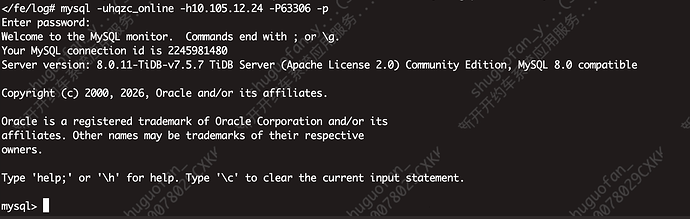

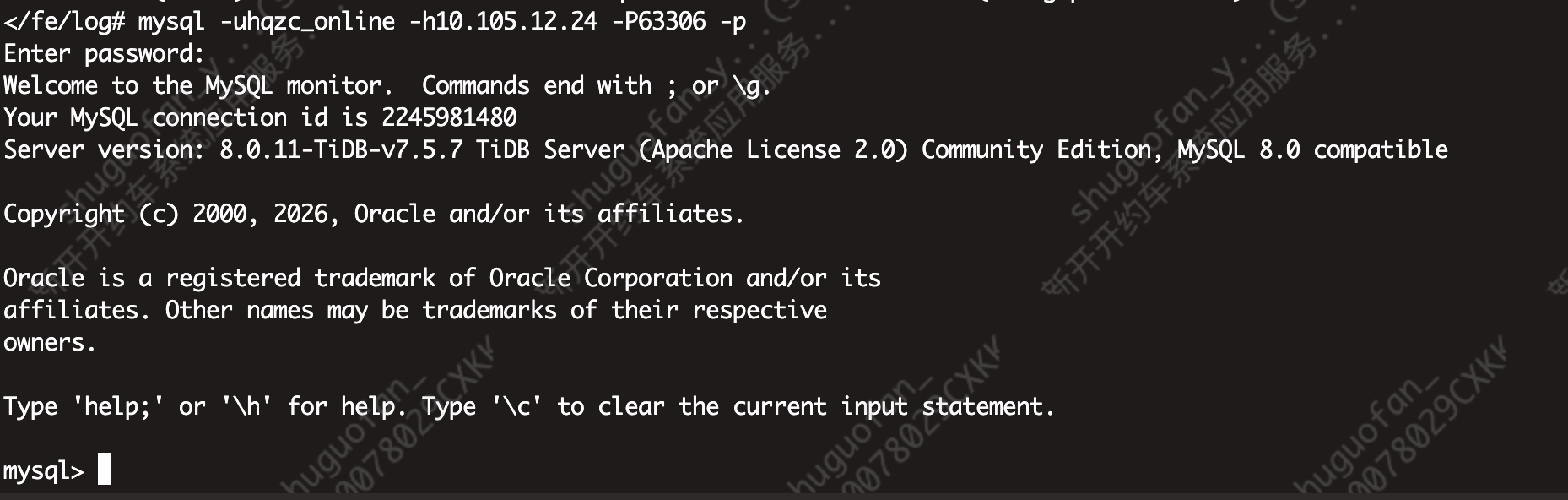

2、tidb-server是独立部署的数据库服务器，不是在容器内的，但已经确认在fe里，通过mysql 客户端可以连接，见截图

3、见截图

er thread 126952. remote=/10.105.12.53:57235, connectionId=16803677
2026-04-21 13:39:34.920+08:00 INFO (starrocks-mysql-nio-pool-82|126952) [ConnectScheduler.unregisterConnection():235] Connection closed. remote=10.105.12.53:57235, connectionId=16803677, qualifiedUser=root, user.currConn=7
2026-04-21 13:39:37.518+08:00 WARN (starrocks-mysql-nio-pool-80|125058) [ProxyConnection.checkException():182] HikariPool-3 - Connection org.mariadb.jdbc.Connection@754351ee marked as broken because of SQLSTATE(08000), ErrorCode(-1)
java.sql.SQLNonTransientConnectionException: (conn=-1711879502) Socket error
at org.mariadb.jdbc.export.ExceptionFactory.createException(ExceptionFactory.java:300) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.export.ExceptionFactory.create(ExceptionFactory.java:366) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.client.impl.StandardClient.readPacket(StandardClient.java:936) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.client.impl.StandardClient.readResults(StandardClient.java:852) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.client.impl.StandardClient.readResponse(StandardClient.java:771) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.client.impl.StandardClient.execute(StandardClient.java:695) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.Statement.executeInternal(Statement.java:1035) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.Statement.executeQuery(Statement.java:166) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.DatabaseMetaData.executeQuery(DatabaseMetaData.java:560) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.DatabaseMetaData.getTables(DatabaseMetaData.java:771) ~[mariadb-java-client-3.3.2.jar:?]
at com.zaxxer.hikari.pool.ProxyDatabaseMetaData.getTables(ProxyDatabaseMetaData.java:69) ~[HikariCP-3.4.5.jar:?]
at com.zaxxer.hikari.pool.HikariProxyDatabaseMetaData.getTables(HikariProxyDatabaseMetaData.java) ~[HikariCP-3.4.5.jar:?]
at com.starrocks.connector.jdbc.MysqlSchemaResolver.checkAndSetSupportPartitionInformation(MysqlSchemaResolver.java:93) ~[starrocks-fe.jar:?]
at com.starrocks.connector.jdbc.JDBCMetadata.checkAndSetSupportPartitionInformation(JDBCMetadata.java:136) ~[starrocks-fe.jar:?]
at com.starrocks.connector.jdbc.JDBCMetadata.(JDBCMetadata.java:104) ~[starrocks-fe.jar:?]
at com.starrocks.connector.jdbc.JDBCMetadata.(JDBCMetadata.java:71) ~[starrocks-fe.jar:?]
at com.starrocks.connector.jdbc.JDBCConnector.(JDBCConnector.java:60) ~[starrocks-fe.jar:?]
at jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[?:?]
at jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:77) ~[?:?]
at jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[?:?]
at java.lang.reflect.Constructor.newInstanceWithCaller(Constructor.java:500) ~[?:?]
at java.lang.reflect.Constructor.newInstance(Constructor.java:481) ~[?:?]
at com.starrocks.connector.ConnectorFactory.createRealConnector(ConnectorFactory.java:66) ~[starrocks-fe.jar:?]
at com.starrocks.connector.LazyConnector.initIfNeeded(LazyConnector.java:68) ~[starrocks-fe.jar:?]
at com.starrocks.connector.ConnectorFactory.createConnector(ConnectorFactory.java:46) ~[starrocks-fe.jar:?]
at com.starrocks.connector.ConnectorMgr.createConnector(ConnectorMgr.java:42) ~[starrocks-fe.jar:?]
at com.starrocks.server.CatalogMgr.createCatalog(CatalogMgr.java:116) ~[starrocks-fe.jar:?]
at com.starrocks.server.CatalogMgr.createCatalog(CatalogMgr.java:92) ~[starrocks-fe.jar:?]
at com.starrocks.qe.DDLStmtExecutor$StmtExecutorVisitor.lambda$visitCreateCatalogStatement$79(DDLStmtExecutor.java:1072) ~[starrocks-fe.jar:?]
at com.starrocks.common.ErrorReport.wrapWithRuntimeException(ErrorReport.java:128) ~[starrocks-fe.jar:?]
at com.starrocks.qe.DDLStmtExecutor$StmtExecutorVisitor.visitCreateCatalogStatement(DDLStmtExecutor.java:1062) ~[starrocks-fe.jar:?]
at com.starrocks.qe.DDLStmtExecutor$StmtExecutorVisitor.visitCreateCatalogStatement(DDLStmtExecutor.java:212) ~[starrocks-fe.jar:?]
at com.starrocks.sql.ast.CreateCatalogStmt.accept(CreateCatalogStmt.java:73) ~[starrocks-fe.jar:?]
at com.starrocks.sql.ast.AstVisitor.visit(AstVisitor.java:107) ~[starrocks-fe.jar:?]
at com.starrocks.qe.DDLStmtExecutor.execute(DDLStmtExecutor.java:197) ~[starrocks-fe.jar:?]
at com.starrocks.qe.StmtExecutor.handleDdlStmt(StmtExecutor.java:2428) ~[starrocks-fe.jar:?]
at com.starrocks.qe.StmtExecutor.execute(StmtExecutor.java:958) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.executeQueryAttempt(ConnectProcessor.java:535) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.runWithParserStageRetry(ConnectProcessor.java:432) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.handleQuery(ConnectProcessor.java:369) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.dispatch(ConnectProcessor.java:746) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.processOnce(ConnectProcessor.java:1123) ~[starrocks-fe.jar:?]
at com.starrocks.mysql.nio.MySQLReadListener.handleRequest(MySQLReadListener.java:152) ~[starrocks-fe.jar:?]
at com.starrocks.mysql.nio.MySQLReadListener.lambda$handleEvent$0(MySQLReadListener.java:92) ~[starrocks-fe.jar:?]
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136) ~[?:?]
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635) ~[?:?]
at java.lang.Thread.run(Thread.java:840) ~[?:?]
Caused by: java.net.SocketTimeoutException: Read timed out
at sun.nio.ch.NioSocketImpl.timedRead(NioSocketImpl.java:288) ~[?:?]
at sun.nio.ch.NioSocketImpl.implRead(NioSocketImpl.java:314) ~[?:?]
at sun.nio.ch.NioSocketImpl.read(NioSocketImpl.java:355) ~[?:?]
at sun.nio.ch.NioSocketImpl$1.read(NioSocketImpl.java:808) ~[?:?]
at java.net.Socket$SocketInputStream.read(Socket.java:966) ~[?:?]
at java.io.BufferedInputStream.fill(BufferedInputStream.java:244) ~[?:?]
at java.io.BufferedInputStream.read1(BufferedInputStream.java:284) ~[?:?]
at java.io.BufferedInputStream.read(BufferedInputStream.java:343) ~[?:?]
at org.mariadb.jdbc.client.socket.impl.PacketReader.readReusablePacket(PacketReader.java:62) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.message.ClientMessage.readPacket(ClientMessage.java:153) ~[mariadb-java-client-3.3.2.jar:?]
at org.mariadb.jdbc.client.impl.StandardClient.readPacket(StandardClient.java:913) ~[mariadb-java-client-3.3.2.jar:?]
… 44 more
2026-04-21 13:39:37.519+08:00 ERROR (starrocks-mysql-nio-pool-80|125058) [JDBCConnector.():63] Failed to create jdbc metadata on [catalog : tidb_catalog]
com.starrocks.connector.exception.StarRocksConnectorException: (conn=-1711879502) Socket error
at com.starrocks.connector.jdbc.MysqlSchemaResolver.checkAndSetSupportPartitionInformation(MysqlSchemaResolver.java:104) ~[starrocks-fe.jar:?]
at com.starrocks.connector.jdbc.JDBCMetadata.checkAndSetSupportPartitionInformation(JDBCMetadata.java:136) ~[starrocks-fe.jar:?]
at com.starrocks.connector.jdbc.JDBCMetadata.(JDBCMetadata.java:104) ~[starrocks-fe.jar:?]
at com.starrocks.connector.jdbc.JDBCMetadata.(JDBCMetadata.java:71) ~[starrocks-fe.jar:?]
at com.starrocks.connector.jdbc.JDBCConnector.(JDBCConnector.java:60) ~[starrocks-fe.jar:?]
at jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[?:?]
at jdk.internal.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:77) ~[?:?]
at jdk.internal.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[?:?]
at java.lang.reflect.Constructor.newInstanceWithCaller(Constructor.java:500) ~[?:?]
at java.lang.reflect.Constructor.newInstance(Constructor.java:481) ~[?:?]
at com.starrocks.connector.ConnectorFactory.createRealConnector(ConnectorFactory.java:66) ~[starrocks-fe.jar:?]
at com.starrocks.connector.LazyConnector.initIfNeeded(LazyConnector.java:68) ~[starrocks-fe.jar:?]
at com.starrocks.connector.ConnectorFactory.createConnector(ConnectorFactory.java:46) ~[starrocks-fe.jar:?]
at com.starrocks.connector.ConnectorMgr.createConnector(ConnectorMgr.java:42) ~[starrocks-fe.jar:?]
at com.starrocks.server.CatalogMgr.createCatalog(CatalogMgr.java:116) ~[starrocks-fe.jar:?]
at com.starrocks.server.CatalogMgr.createCatalog(CatalogMgr.java:92) ~[starrocks-fe.jar:?]
at com.starrocks.qe.DDLStmtExecutor$StmtExecutorVisitor.lambda$visitCreateCatalogStatement$79(DDLStmtExecutor.java:1072) ~[starrocks-fe.jar:?]
at com.starrocks.common.ErrorReport.wrapWithRuntimeException(ErrorReport.java:128) ~[starrocks-fe.jar:?]
at com.starrocks.qe.DDLStmtExecutor$StmtExecutorVisitor.visitCreateCatalogStatement(DDLStmtExecutor.java:1062) ~[starrocks-fe.jar:?]
at com.starrocks.qe.DDLStmtExecutor$StmtExecutorVisitor.visitCreateCatalogStatement(DDLStmtExecutor.java:212) ~[starrocks-fe.jar:?]
at com.starrocks.sql.ast.CreateCatalogStmt.accept(CreateCatalogStmt.java:73) ~[starrocks-fe.jar:?]
at com.starrocks.sql.ast.AstVisitor.visit(AstVisitor.java:107) ~[starrocks-fe.jar:?]
at com.starrocks.qe.DDLStmtExecutor.execute(DDLStmtExecutor.java:197) ~[starrocks-fe.jar:?]
at com.starrocks.qe.StmtExecutor.handleDdlStmt(StmtExecutor.java:2428) ~[starrocks-fe.jar:?]
at com.starrocks.qe.StmtExecutor.execute(StmtExecutor.java:958) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.executeQueryAttempt(ConnectProcessor.java:535) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.runWithParserStageRetry(ConnectProcessor.java:432) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.handleQuery(ConnectProcessor.java:369) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.dispatch(ConnectProcessor.java:746) ~[starrocks-fe.jar:?]
at com.starrocks.qe.ConnectProcessor.processOnce(ConnectProcessor.java:1123) ~[starrocks-fe.jar:?]
at com.starrocks.mysql.nio.MySQLReadListener.handleRequest(MySQLReadListener.java:152) ~[starrocks-fe.jar:?]
at com.starrocks.mysql.nio.MySQLReadListener.lambda$handleEvent$0(MySQLReadListener.java:92) ~[starrocks-fe.jar:?]
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136) ~[?:?]
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635) ~[?:?]
at java.lang.Thread.run(Thread.java:840) ~[?:?]

Gavin_guo · 2026年04月21日 07:40

tidb那边的 information_schema 下的系统表数量比较多，这块创建catalog会遍历其中的所有表，然后找到partitions表，比较耗时，connectTimeout=60000&socketTimeout=60000改成这个再试试

乘风破浪 · 2026年04月21日 08:56

tidb下的表和分区表确实很多，有什么方法能规避这个问题么，按需扫描tidb的infomation_schema信息

Gavin_guo · 2026年04月21日 09:00

可以先试试增加超时时间看最终能不能成功，如果可以的话，这边可能需要提研发看看能不能优化一下这块

乘风破浪 · 2026年04月21日 10:32

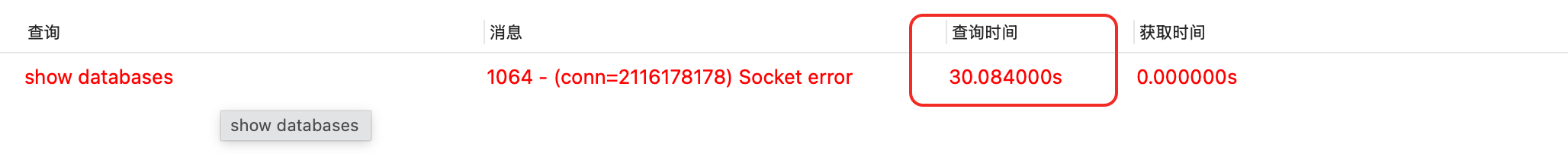

connectTimeout=600000&socketTimeout=600000，设置成这样了，10分钟，还是不行，而且从客户端的执行耗时来看，仍然是30秒，感觉jdbc的配置没有生效呢？

Gavin_guo · 2026年04月21日 10:54

ADMIN SET FRONTEND CONFIG (“jdbc_network_timeout_ms” = “60000”);
ADMIN SET FRONTEND CONFIG (“jdbc_query_timeout_ms” = “60000”);
改一下这两个试试

乘风破浪 · 2026年04月21日 11:19

可以了，谢谢，但还是建议不全量扫描infomation下的信息，因为外部数据仓库一般都很大，特别容易超时

Gavin_guo · 2026年04月21日 11:26

了解，这边跟研发也沟通一下
