StarRocks授权集成接口服务

🙌🏻 技术分享 实用工具
#1

使用接口层级的方式实现对starrocks集群进行账号、权限、库表授权管理。

  1. 支持权限授予、权限回收，例如：ALTER,DROP,SELECT,INSERT,EXPORT,UPDATE,DELETE,CREATE_TABLE,CREATE_VIEW,CREATE_FUNCTION,CREATE_MATERIALIZED_VIEW,CREATE_ROW_ACCESS_POLICY,CREATE_MASKING_POLICY…
  2. 支持账号创建、账号回收
  3. 支持创建库
  4. 支持Apache Ranger

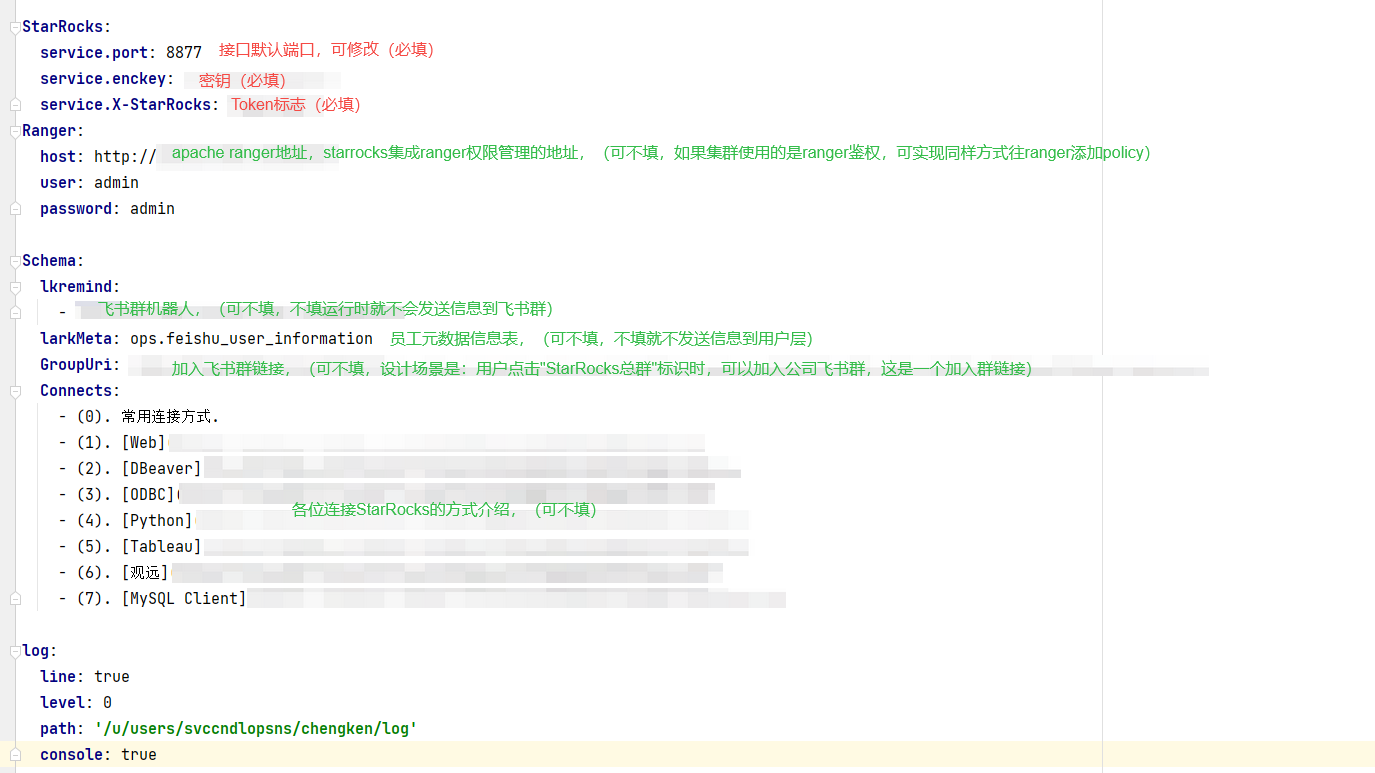

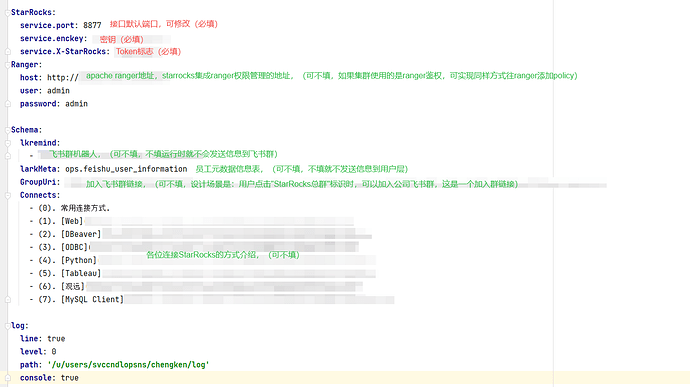

配置文件说明：

2025-05-19-13-58-38-image
2025-05-19-13-58-38-image1375×773 83.3 KB

点击查看：StarRocksDict.yaml

密钥的生成说明：

为什么要加这一层？因为作为一个接口，并不是所有的请求都会处理，只有具备token的请求，才进行响应，否则将拒绝响应。

这里用到加密工具：encpass2.0，自取

假如配置密钥：

service.enckey: bigdatastarrocks
service.X-StarRocks: StarRocks

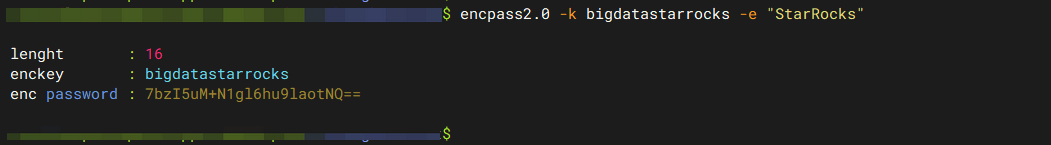

生成请求密钥：

lenght : 16
enckey : bigdatastarrocks
enc password : 7bzI5uM+N1gl6hu9laotNQ==

2025-05-19-14-12-59-image
2025-05-19-14-12-59-image1051×145 9.1 KB

那么，发起http请求时，需要带上 -H “X-StarRocks: 7bzI5uM+N1gl6hu9laotNQ==”，否则校验失败，报非管理员不可使用，并打回请求。

"密钥HEAD为空，您无权使用管理员POST功能！！"

  1. 配置密钥选项：

    StarRocks: service.port: 8876 service.enckey: bigdatastarrocks service.X-StarRocks: StarRocks

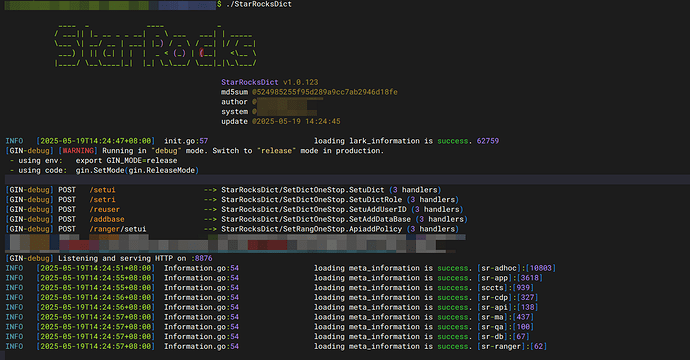

  2. 服务正式启动

2025-05-19-14-26-25-image
2025-05-19-14-26-25-image1409×736 81.1 KB

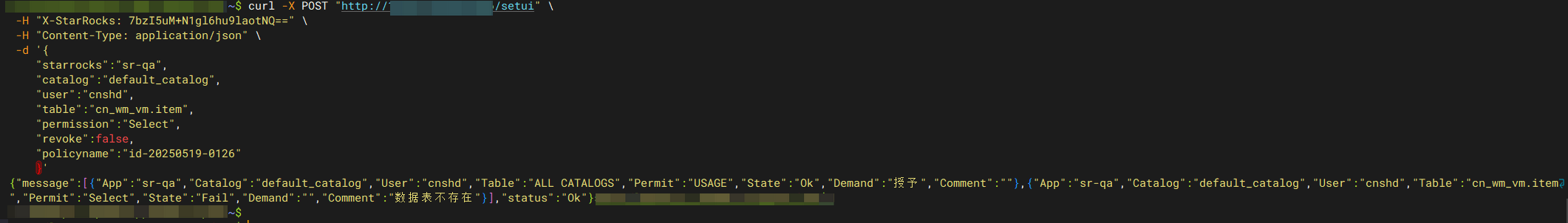

  1. 尝试发起请求

2025-05-19-14-34-15-image
2025-05-19-14-34-15-image2122×302 25.4 KB

`curl -X POST “http://xxx:8876/setui”
-H “X-StarRocks: 7bzI5uM+N1gl6hu9laotNQ==”
-H “Content-Type: application/json”
-d '{

   "starrocks":"sr-qa",
   "catalog":"default_catalog",
   "user":"cnshd",
   "table":"cn_wm_vm.item",
   "permission":"Select",
   "revoke":false,
   "policyname":"id-20250519-0126"
   }'`

当密钥不正确时，则拒绝访问。

2025-05-19-14-36-15-image
2025-05-19-14-36-15-image883×302 16.7 KB

例子：

REQUEST:

curl -X POST “http://:/”
-H "X-StarRocks: "
-H “Content-Type: application/json”
-d ‘’

DESCRIPTION:
IP：当前运行接口程序的机器IP。
PORT：端口默认8877，可在配置文件service.port中进行修改。
API：方法，具体有[/ranger/setui] | [/setui] | [/reuser] | [/addbase] | [/setri]。
TOKEN：密钥，这是一个防爆破密钥，填在请求header中，可在配置文件service.X-StarRocks中修改，在配置文件中会根据service.enckey值进行强加密，加解密方式在util/enc.go中有详解。
JSON_BODY：请求体，如下各项功能介绍所示

功能：

  1. native权限授权、权限撤回（/setui）

  2. 账号新建与删除管理（/reuser）

  3. 数据库添加与调整分配额（/addbase）

  4. 角色权限授权、权限撤回（/setri）

  5. apache ranger权限授权、权限撤回（/ranger/setui）

Apache Ranger
http://:/ranger/setui
curl -X POST "http://<IP>:<PORT>/ranger/setui" \ -H "X-StarRocks: <TOKEN>" \ -H "Content-Type: application/json" \ -d '{ "starrocks":"sr-adhoc", "catalog":"default_catalog", "user":"scnshs", "table":"cn_wm_repl_vm.grs_fulfillment_parm, cn_wm_repl_vm.channel_mthd_txt, cn_wm_vm.item_dc, cn_wm_vm.item, cn_wm_repl_vm.grs_filtered_order", "permission":"Select", "revoke":false, "policyname":"<no>" }'

前提条件：FE开启ranger接管鉴权

#ranger access access_control = ranger

2025-05-19-14-44-06-image
2025-05-19-14-44-06-image2560×1271 88.6 KB

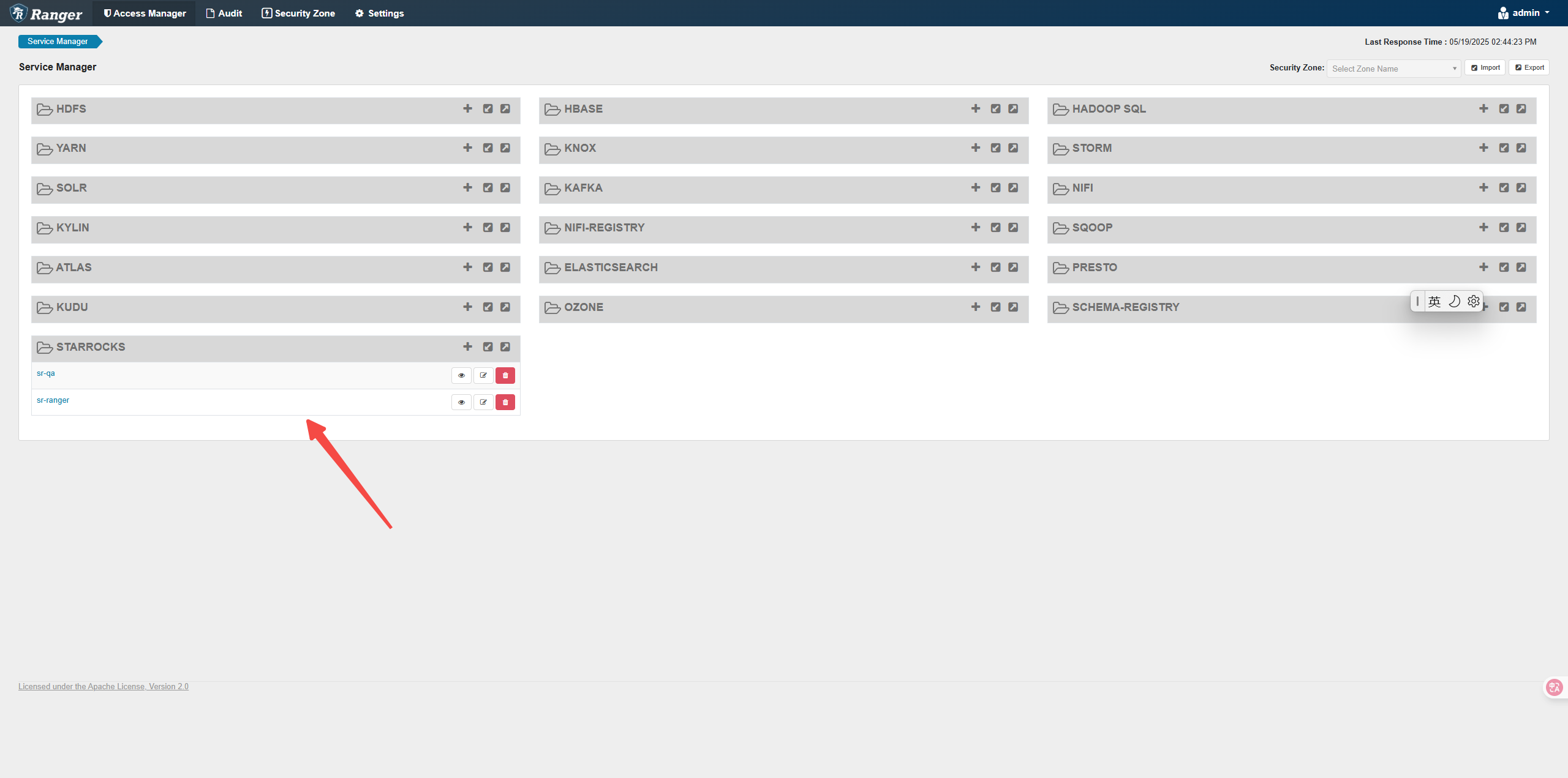

已经配置接管

2025-05-19-14-44-44-image
2025-05-19-14-44-44-image2560×1271 194 KB

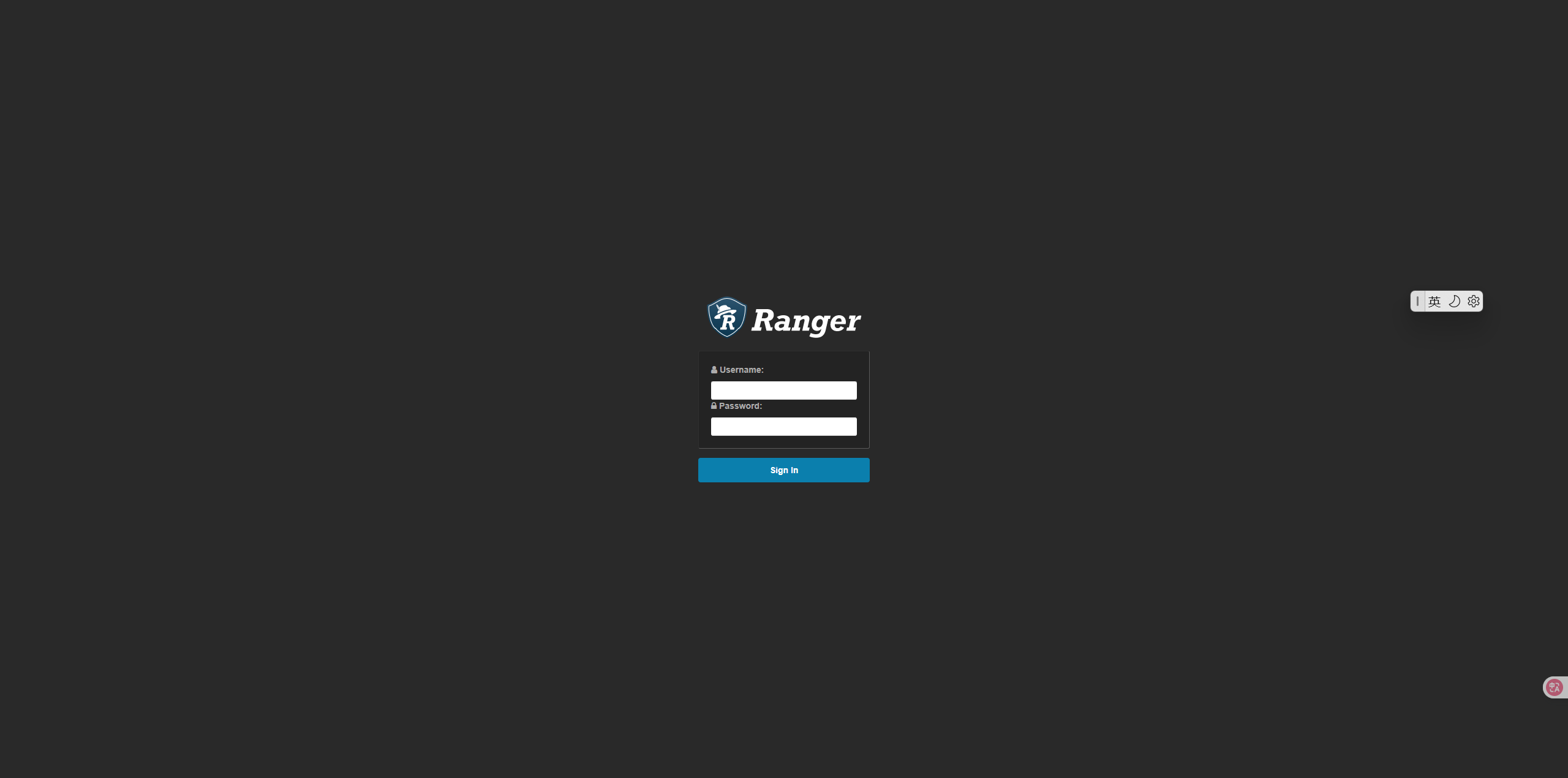

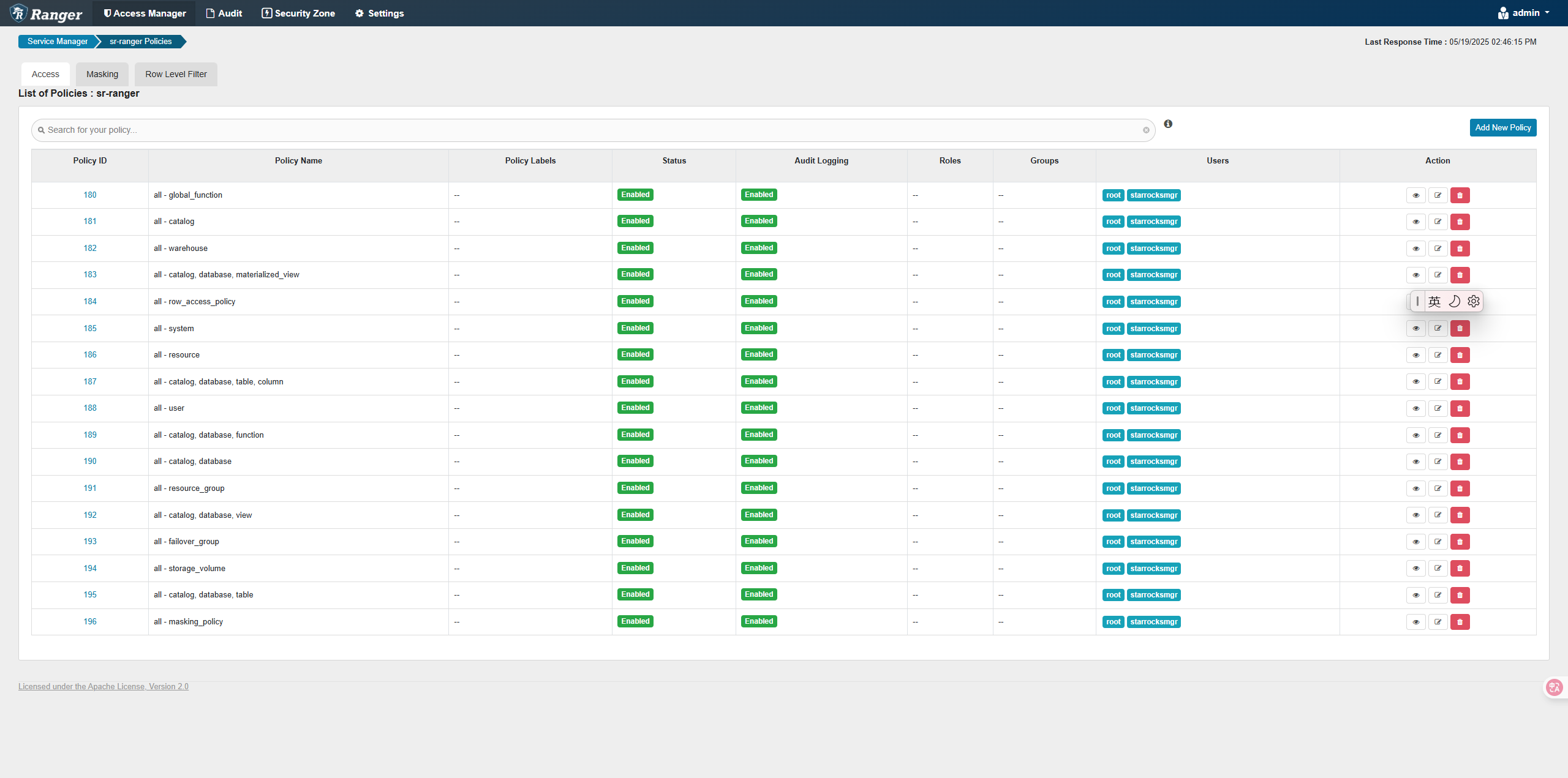

最原始的状态

2025-05-19-14-46-33-image
2025-05-19-14-46-33-image2560×1271 267 KB

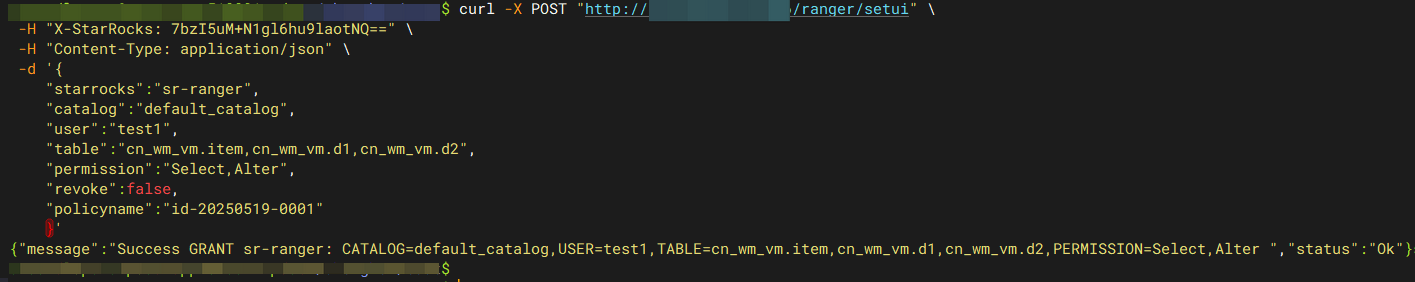

需求：对test1账号授予cn_wm_vm.item,cn_wm_vm.d1,cn_wm_vm.d2表的Select,Alter权限，那么结构体如下：

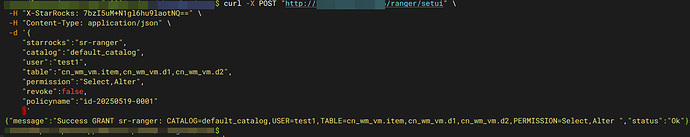

curl -X POST "http://xxx:8876/ranger/setui" \ -H "X-StarRocks: 7bzI5uM+N1gl6hu9laotNQ==" \ -H "Content-Type: application/json" \ -d '{ "starrocks":"sr-ranger", "catalog":"default_catalog", "user":"cnshd", "table":"cn_wm_vm.item,cn_wm_vm.d1,cn_wm_vm.d2", "permission":"Select,Alter", "revoke":false, "policyname":"id-20250519-0001" }'

2025-05-19-14-53-17-image
2025-05-19-14-53-17-image1415×282 21.1 KB

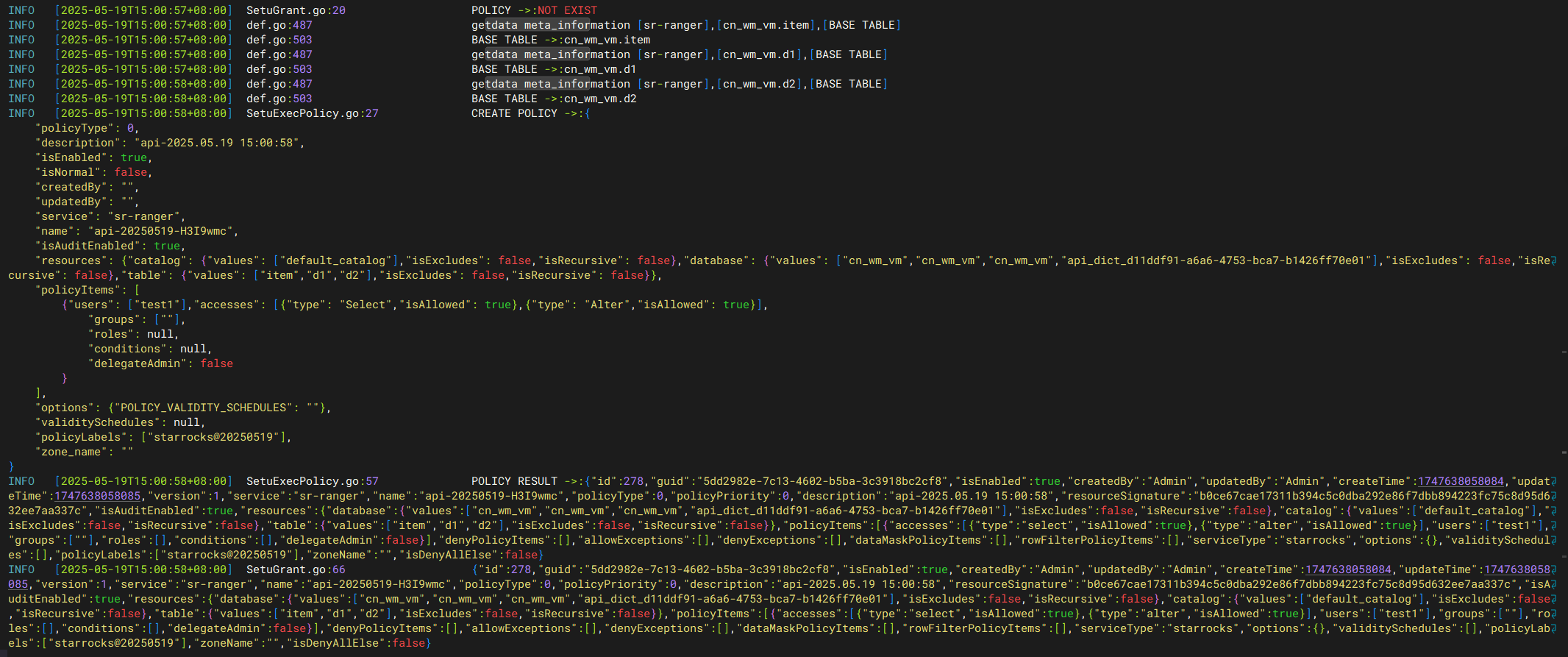

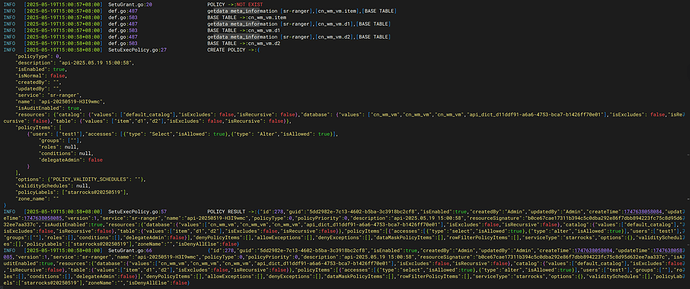

服务日志（自动创建policy）：

2025-05-19-15-01-36-image
2025-05-19-15-01-36-image2132×893 124 KB

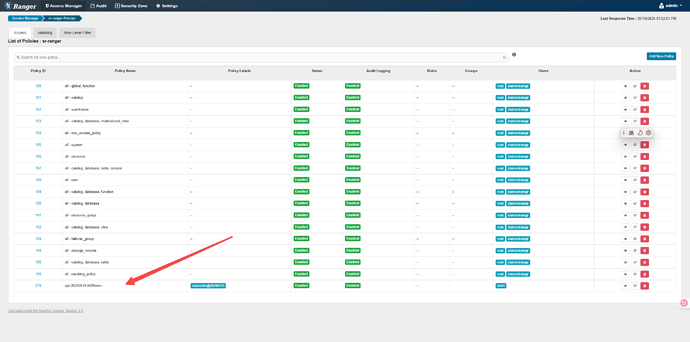

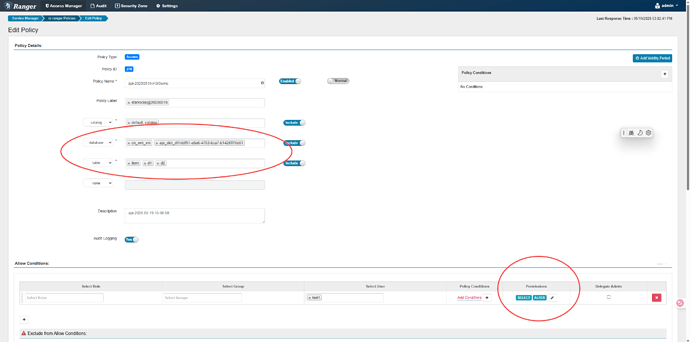

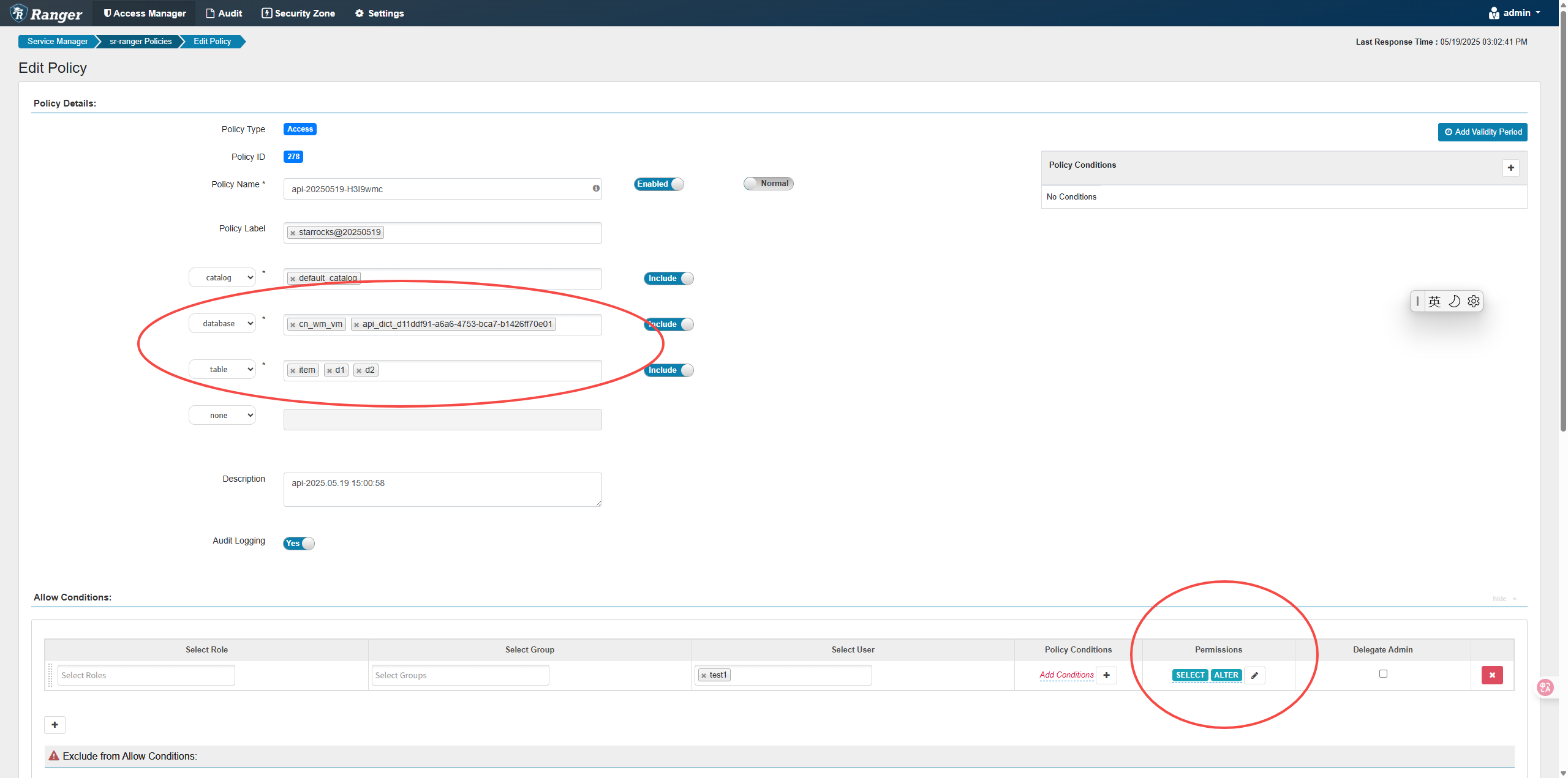

ranger界面：

2025-05-19-15-02-36-image
2025-05-19-15-02-36-image2560×1271 275 KB

2025-05-19-15-02-59-image
2025-05-19-15-02-59-image2560×1271 225 KB

已经赋予权限。

其他：

账号增删
http://:/reuser
curl -X POST "http://<IP>:<PORT>/reuser" \ -H "X-StarRocks: <TOKEN>" \ -H "Content-Type: application/json" \ -d '{ "starrocks":"sr-qa", "user":"scnshs1", "owner":"c0l0f9l", "ldap":false, "option":"create", "policyname":"create-20250512-0002" }'

{ "starrocks":"<app>",#集群名称 "user":"<user>",#账号 "owner":"<owner>",#责任人，填写责任人名称后，该用户会收到相关的邮件，账号密码。 "ldap":<true>|<false>,#true，代表创建ldap类型账号、false，代表创建native类型账号 "option":"<create>|<reset>|<drop>",#create创建账号、reset重置密码、drop删除账号 "policyname":"<label>"#标识，可不填，可填工单号 }

权限管理
http://:/setui
curl -X POST "http://<IP>:<PORT>/setui" \ -H "X-StarRocks: <TOKEN>" \ -H "Content-Type: application/json" \ -d '{ "starrocks":"sr-adhoc", "catalog":"default_catalog", "user":"scnshs", "table":"cn_wm_repl_vm.grs_fulfillment_parm", "permission":"Select", "revoke":false, "policyname":"Request-20250512-0002" }'

{ "starrocks":"<app>",#集群名称 "catalog":"<catalog>",#catalog名称，[default_catalog]|[iceberg]|[hive]|[jdbc catalog name...] "user":"<user1>,<user2>...",#账号，支持多个账号 "table":"<schema.tablename1>,<schema.tablename2>...",#库表，支持多个库表 "permission":"<SELECT,ALTER...>",#权限，支持多个权限 "revoke":<true>|<false>,#true，代表撤销权限，false，代表赋予权限 "policyname":"<label>"#标识，可不填，可填工单号 }

解析：对sr-adhoc集群中的scnshs,test2这两个账号授予default_catalog下面cn_wm_repl_vm.grs_fulfillment_parm, cn_wm_repl_vm.channel_mthd_txt, cn_wm_vm.item_dc, cn_wm_vm.item, cn_wm_repl_vm.grs_filtered_order 这五个表的查询权限和删除权限。

REQUEST:
curl -X POST "http://<IP>:<PORT>/setui" \ -H "X-StarRocks: <token>" \ -H "Content-Type: application/json" \ -d '{ "starrocks":"sr-adhoc", "catalog":"default_catalog", "user":"scnshs", "table":"cn_wm_repl_vm.grs_fulfillment_parm, cn_wm_repl_vm.channel_mthd_txt, cn_wm_vm.item_dc, cn_wm_vm.item, cn_wm_repl_vm.grs_filtered_order", "permission":"Select", "revoke":false, "policyname":"<no>" }'

REPONSE:

{ "message": [ { "App": "sr-adhoc", "Catalog": "default_catalog", "User": "scnshs", "Table": "ALL CATALOGS", "Permit": "USAGE", "State": "Ok", "Demand": "授予", "Comment": "" }, { "App": "sr-adhoc", "Catalog": "default_catalog", "User": "scnshs", "Table": "cn_wm_repl_vm.grs_filtered_order", "Permit": "Select", "State": "Ok", "Demand": "授予", "Comment": "" }, { "App": "sr-adhoc", "Catalog": "default_catalog", "User": "scnshs", "Table": "cn_wm_vm.item_dc", "Permit": "Select", "State": "Ok", "Demand": "授予", "Comment": "" }, { "App": "sr-adhoc", "Catalog": "default_catalog", "User": "scnshs", "Table": "cn_wm_repl_vm.channel_mthd_txt", "Permit": "Select", "State": "Ok", "Demand": "授予", "Comment": "" }, { "App": "sr-adhoc", "Catalog": "default_catalog", "User": "scnshs", "Table": "cn_wm_vm.item", "Permit": "Select", "State": "Ok", "Demand": "授予", "Comment": "" }, { "App": "sr-adhoc", "Catalog": "default_catalog", "User": "scnshs", "Table": "cn_wm_repl_vm.grs_fulfillment_parm", "Permit": "Select", "State": "Ok", "Demand": "授予", "Comment": "" } ], "status": "Ok" }

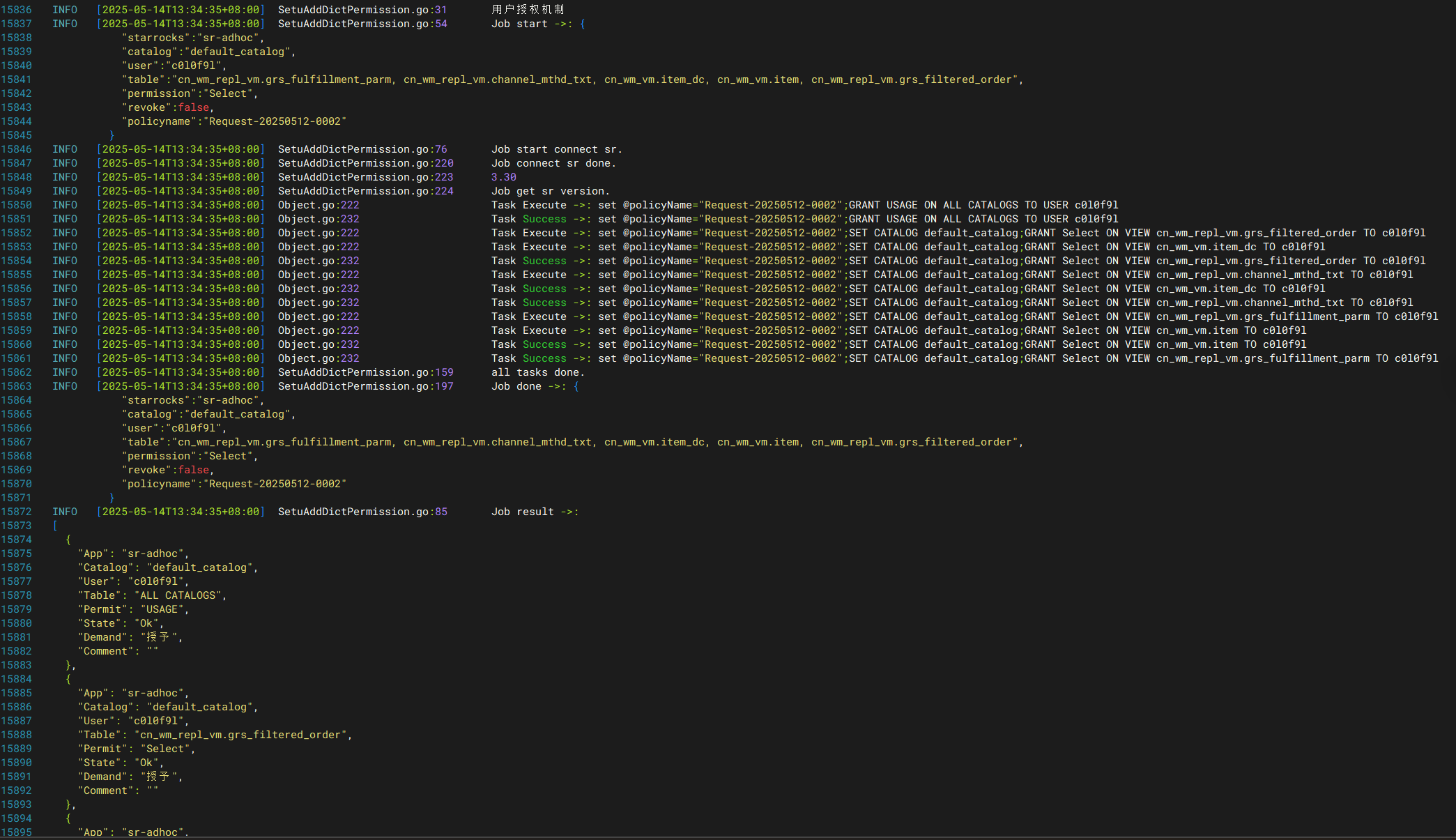

LOG:

image2089×1205 252 KB

如配置了飞书应用机器人，scnshs用户亦会收到机器人发送的消息（这里的"StarRocks总群"是一个超链接，链接对应的填写地址是yaml配置文件中的Schema.GroupUri），如下：
image792×493 60.8 KB

程序依赖配置表：
-- db.starrocks_information_connections definition CREATE TABLE starrocks_information_connections ( app varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL COMMENT '集群名称(英文)', nickname varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '别名', alias varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '集群别名', feip varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL COMMENT '集群连接地址(必填)F5,VIP,CLB,FE', user varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL COMMENT '集群登录账号(必填) 建议是管理员角色的账号', password varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL COMMENT '集群登录密码(必填)', feport int NOT NULL DEFAULT '9030' COMMENT '集群登录端口，默认9030', address varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT 'MANAGER地址，如果填了MANAGER地址，那么将触发定时检查LICENSE是否过期(企业级)', expire int DEFAULT '30' COMMENT 'LICENSE是否过期(企业级)过期提醒倒计时，单位day', status int NOT NULL DEFAULT '0' COMMENT 'LICENSE是否过期(企业级)开关,0 off, 1 on', fe_log_path varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT 'FE 日志目录', be_log_path varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT 'BE 日志目录', be_meta_log varchar(200) DEFAULT NULL, java_udf_path varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT 'BE 日志目录', manager_access_key varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT 'manager 开发者的access key', manager_secret_key varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT 'manager 开发者的secret key', updated_at timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间' ) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='StarRocks登录配置，manager地址,(定期检查license过期日期)';

INSERT INTO db.starrocks_information_connections (app, nickname, alias, feip, user, password, feport, address, expire, status, fe_log_path, be_log_path, be_meta_log, java_udf_path, manager_access_key, manager_secret_key, updated_at) VALUES('sr-ranger', 'StarRocks(Tencent Cloud) SR-RangerQa', NULL, 'FE连接地址', 'root', '密码', 9030, 'http://xxx:19321', 30, 1, NULL, NULL, NULL, NULL, NULL, NULL, '2025-04-23 18:00:05');

@ https://github.com/chengkenli/StarRocksDict
