存算分离的CN节点 内存泄露风险

[kkkkwe5]

为了更快的定位您的问题，请提供以下信息，谢谢
【详述】存算分离的CN节点 有一台机器 内存很高 过几天 内存就打满 然后会报内存不足
【背景】就跑着一些视图任务 可能查询数据比较大 但是内存充足的时候是没问题的
【业务影响】 视图任务无法执行
【是否存算分离】 是
【StarRocks版本】例如：3.1.13
【集群规模】例如：3fe（1 follower+2observer）+3be
【机器信息】fe 8C32G CN 16C64G
【联系方式】972592651@qq.com
【附件】

[kkkkwe5]

主要是 be节点内存高 但是子进程 内存都不高 机器重启后 过段时间又会慢慢打满 每次都是一台机器内存较高

[LIANGCHAOHUA]

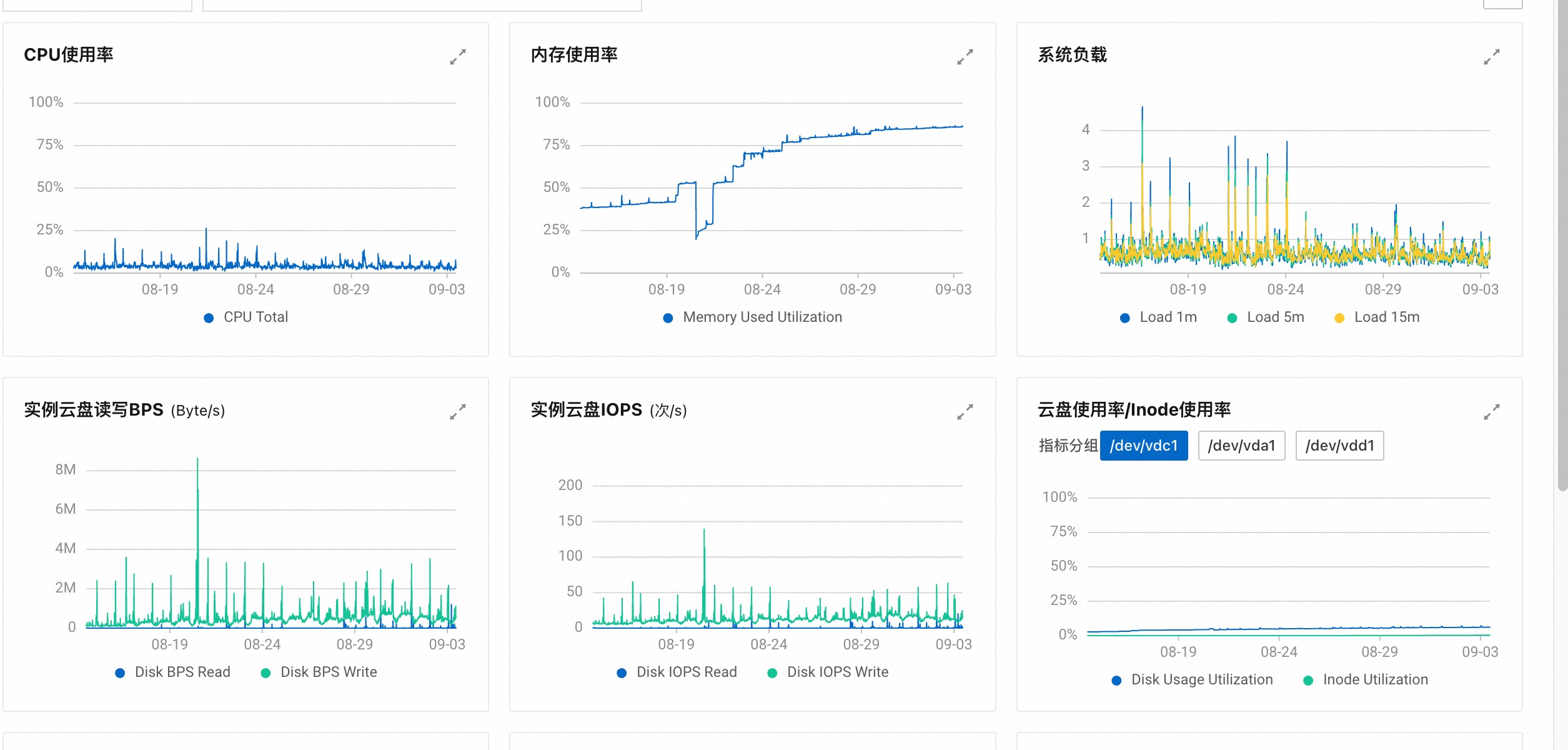

有内存24小时的监控图吗？

[kkkkwe5]

[kkkkwe5]

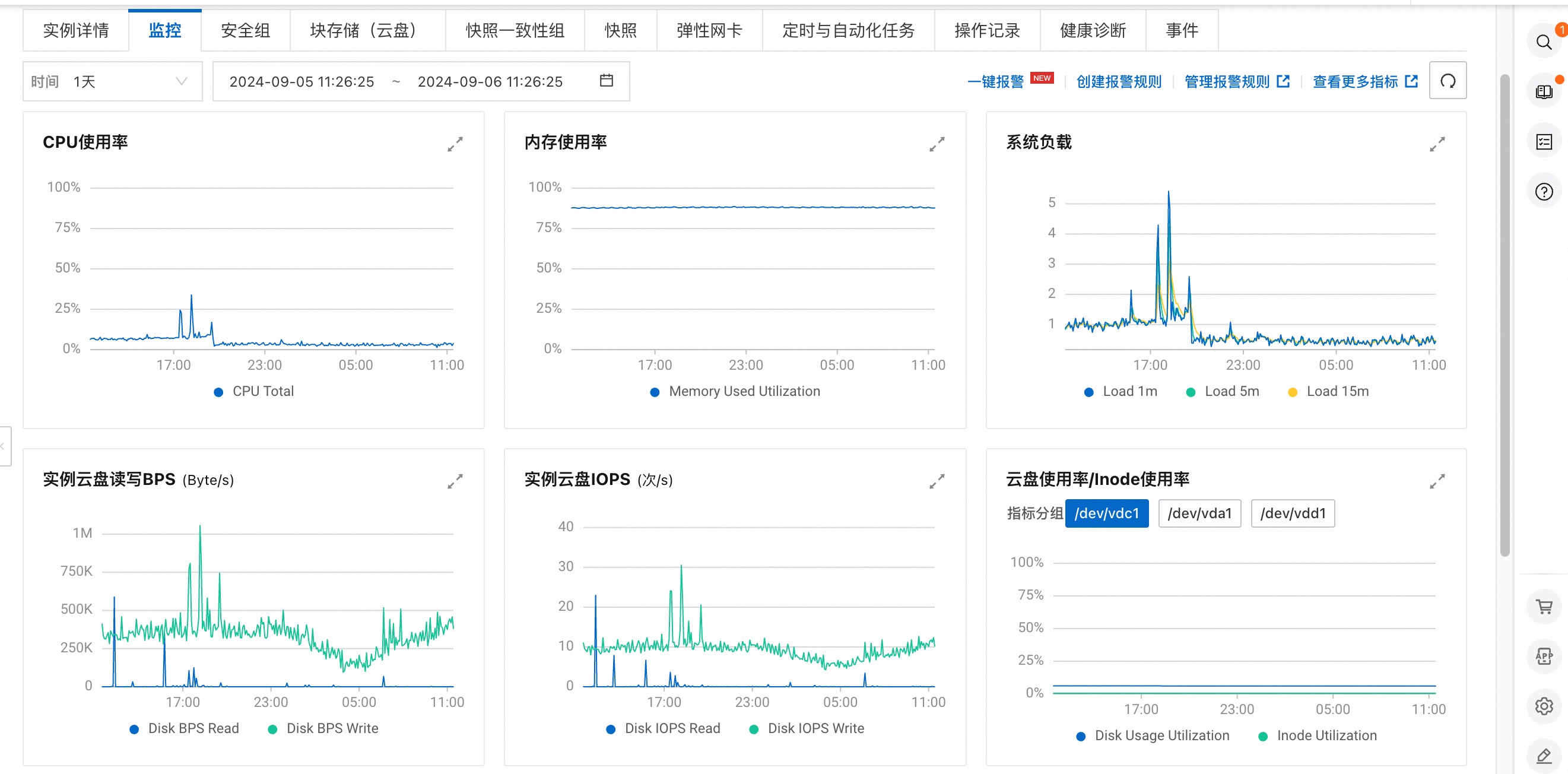

服务器自从重启完 内存就一路在上涨

[trueeyu]

@kkkkwe5

存高 但是子进程 内存都不

可能是AwsSDK内存泄漏导致的，升级到3.2吧

[trueeyu]

[Enhancement] Upgrade staros v3.2.1

[kkkkwe5]

升级到 3.2.10 跑了几个大查询 内存 又上去下不来了 剩下的内存又不知道干啥去了

[trueeyu]

随便跑几个大查询，内存就下不来了？

[kkkkwe5]

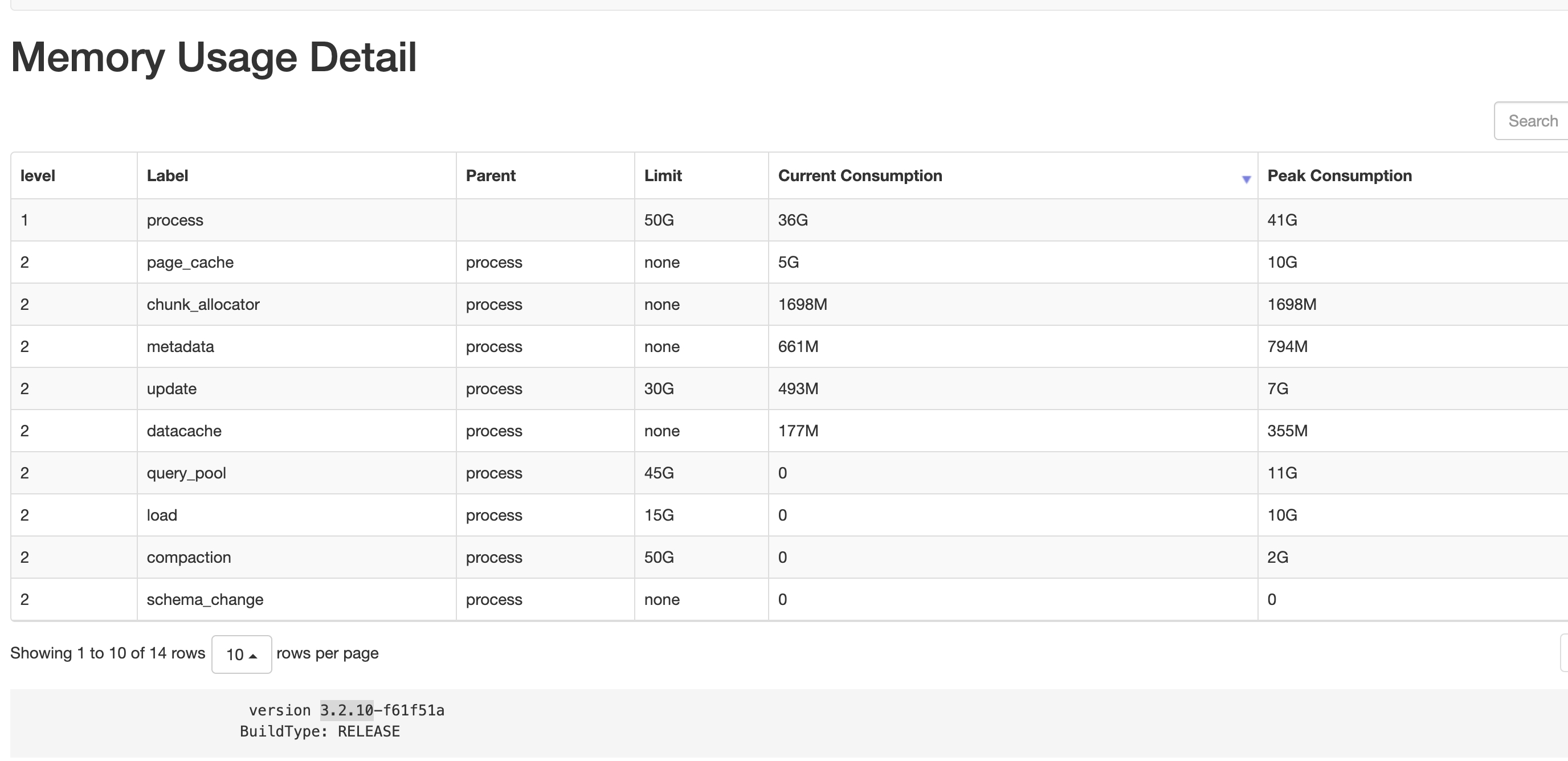

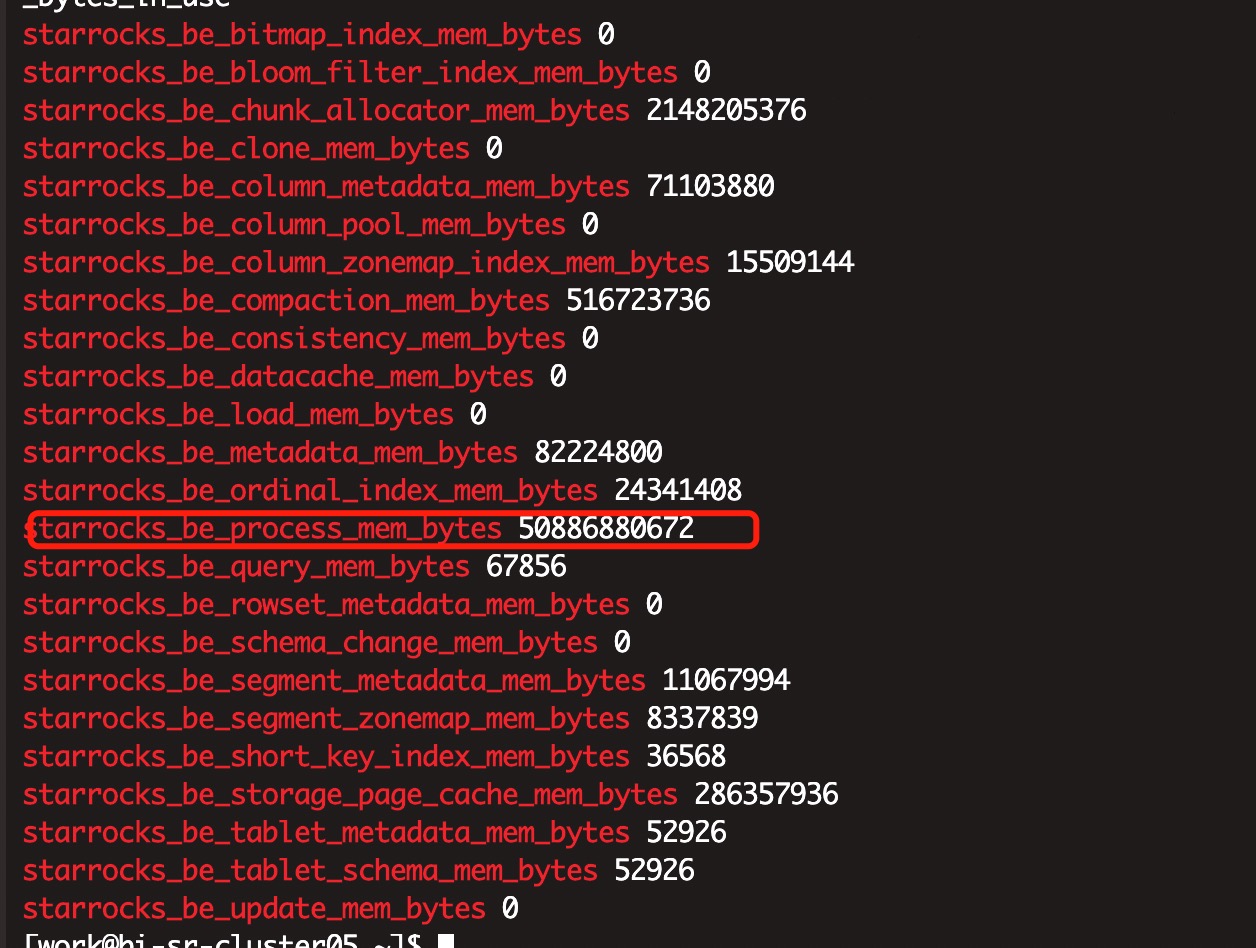

下面是当前内存情况 帮忙看下
https://dreampuf.github.io/GraphvizOnline/?compressed=CYSw5gTghgDgFgAgEQHphQC5RQZSxAJQHsBjAawGcBaAZgDoBGRgFhQCMBTFAGxDZQr4IpSgH1OAbgQNmdAOwIAsgCEkCAN4AoAHZFgHBAG0A7iGAY4AXgAMdGnICsAGjgdwcDDboAmBwF0JTQAZDjAObWAjCjhYDks2IgAPJwAzIm0MChAALzjvZido2MsYbigQDI5EjCcyzm5LVHQsXHxicmp6Jhl2Ll5%2BQSgIYQ7xDgAdbgAVIixuJWUALmlZOUmAMVIAVyztMAR05Zl5SYARYRgYDkjdfQoEUwsEAB5LBFsGBCg2CgAKFQAlGcLldItcwvdHohXu86NYFpMkAFNAA5T6GOocBpIUSiEjcdITbS2eG-EkAUiBwhS0no3gQvwAHABOeSU8YQJCFGJXeJJVLpTI5OKMuHIlH0jHfLGNQbDEQUcbaKZwCAcKDAJUULZXCAANxAFA4ogsao1SpJDIpVKINIYdIZLLZVK5RV5CWSaQyWVyllF1nFNCMmOxcpGlCVKrNwAACkQiNwlaAKDBMCQ4CbVerNcS4Va4ezqbSfI7WXJC66eXEPQLvcK-WLAijmMHpaH8BhM9GLXmyQWbXaHUyyxXucUa16hb7-eKHK36o0ggAtZjrPFEAC2MDVFAoylCFVEOwqYAAwqcQCQMD3SdaObaEHI6IyGQ56MxR27q-zJz6RY3UQANnnGUkA3ABPPEoG4AkSCVJ8X1%2BN86A-F0x3dH9BT-SxmFkfwmwUKUFyQMMFSVIJsmYFJlFgshT03bcOF3EB0iVdctx3RVc1vft7xpBDX3fT8qz5T0sPrGcmxfIjQNIjpyMo6jaPojimKyVjtBIBjOJvfNrELB8BKQoS0K-UTaynf8AybZkQPbIZwy4mMoDCABJAB5JUtNU3dRFTMJxD0cDdL7fSB0fZ9BJQ4Tx0wutpwAtF4Rk%2Bz5Xk7QcFCDdwgwAB1CAQAwDgICVFIKmg4V124LYN20LjLVCgz%2BMi4zotMkSJ3EhLrNRBh0RDWUhDI7QyjIIkVNTK8WIy9Nri2bhiqTIh2MmjBppCu8iyfFskNsBwYowsT4qs8UGElAaSKG9LRvGhioCm9IcFm4B5sWjIsw1E0oAoMgNt4raUNfPaDu-I7LIbHq0SDFLBoc4abqVAA1Yq1pIaCJvutb0imb7fs0u6ryqmrtFESAiB1P6wr4iKdocYH2tisHsMk3qWxhy64euqAxqRlHL3RgmseVXGlSqDgSC2IrKaammgbofaGcOizmcShg53ZuSIxG7miWRiBUeggBxcJiugnG2AWvKCqKkrtBSaroiJ2qKAAAQcBxmWYawvel8LAMB35mHoctFdB5WJNV4CNaurWEe0PWDe4Y3tFN6Zvkt-LCre%2B2dgzLTqudt2PYcRk5GsX3qf9nag%2BdDlK0Z8PutOwiLs1rinugoZ6IL7RM5t0qKkNOAK6LBxexoWQqc5dCw9-CPIYYaTW5j9u0bKCBu%2BJvvs8Hx2JeGHK-JcokGs2h8x9JCf-vrpW56bpsGFs6Oc1EdYtk0oXRBiCIFtt0RFFEBUPURAebcT0jLegiFvD%2BwYCDcyd8TpNm8MlZenMtZBB1plfUl4OCuS3ImbQMAtgWyHqIPUxV1LaCVOoMoG42DoAAMQMAAL5KiILqTARBban3%2Bg%2BegQZfjeG8HQQCcDOrHQhuKbw-U2ywzSrHHWSoiEkMduQiAlCR58LsAyIRIixFxXBizCU51ZEc3kavTuG8Exb2tm9YwtjRDNCgJomkwjEKPzanXGe8CuqINRN4aGqDzFKjwAVPYm9arb1tvYrOjjMDOLAY1cKbiGQeNQl4sy4jDGJXyHZORjkQkYDCWeaxkTbG2zKtoIeLiEDCM%2BL8Y4ojQ4%2BIkUY3weSkAACtjQbmgrBRxHAUhQHmteRJZ9XG9ntLXaemSDEq0htAjp3S-LUnEPdMgRT7on17OM2pkzg76KZvPKRLdTHLO3LaE0V5Eh4jNFLMZvCJmkimSHDJHU5nHKQUvUxvSYKkBqcI55BzmlZPmVIp%2BF0LkpDWeQTZJBjQgHwUqQFqTgVvIbggyw0D5aBhQaYtgEAYBwW0K5QhktFBqXCGEW27ltAog4MYClu5j71R2Y86Q8tUm2BoIcxufiUQ0BkcRAlRKQkiA4KMmMIw1IAFFyEZBqUwOcDTuW8sxUYmgJjhWmmzJGXGhthAUwyLjUQEB34p24WyqeD4lVcrsGq3xkimw0ECfinVn1eljVECkLSlRqiKs5Sq%2B1IKPn31RBPDpbclTrAdnAGYY0qEkxzo7bKG4sAW22Txa1doA4jhDUcsNAr1ZBIKdoClG5zYLVKrGgNO083otvo6jVUcS3DXLemhaMbc44x%2BkqM1iaeHZo5XW6ZN9Z5NsSvYSNK8QlZRylEge2gKq5FrQyetMz3kFv5TQb5xEo3a1AQACS4TkQURsTbQDThmq2WcKk1oeUOpgI7XkboxROyGNAIWmP3XHStEqok4AqHjZNec4DvzxoOmWT612ju8aCz5qIvYdMcsANgSoQlkBADAIIhoMAEA4DAJUABBP5aN7mQfCkwARrJvAOtaYlZgQrQIobQ9oIjaol3EdI5gDg9LjA0REEqKjMHaP5r5Viuk4pmBauYwqVDSp6KaS2AfDI7HwgJJI7BHjJHwApxzBR6mwnfg0bo9kyGQdkNydY4p-eHGMBqc42x7jRU8GlADdRnwpmwVNlwpZjo8ntCnGUK5gh28lSGHxISJUdAtNlF4N9Pw7mRNeYQ82YtpiWNKiCyFpU28csPqg9o4znmxPqoYy2jLVmlTlr-cR4A%2BmrWFY86Jht476PmdOcRTLZaOAVvTrguqKM3oxklqedYSXistdfY29rUnd2yf86xmr-XSVGn1sN0b6x8sGaLEZkzpX31Sa-V1qrvdbHKDTMPElNseMTf261lpZnZx4pO4t3L53Lukptkughq2UZfaIHdkrD34OFocEx7E3Xt4XYwOmL7xUftKlcjd8jjXKNFfu9NtrT2mwOBk6lUtABpRGeAuFEhiUVNZsOrs7ZtRj4HWPHvedRG%2BadaCuJ-owBSrAigoBLupUqCnxpdRZEEIfCo%2BgbnZSwEDqbY6mepYcGzVtXNQFSsRUMcChOODgSmIkbQQQiBgCI5cXgO8qnRFlylsH6W90zoPUSAAqjAZoHBef87et5DchUVka4gJBCXVQrcHdm7jirwrJYgF%2B%2B5OM%2BtoJKNgFcCI3rhAbm9VH40dwSAFRgBgLhAbST%2B2ZNb-lDhOugTYJHghLFK8pCVPdAAjlsEAaoTTcAoOIWiBeGRF5L06ln82CfDQidofDGpPd3KJEwQvz4%2B-SMYLOY7sl7eZTANlBVJNs-qkp-nYmprswUO778f2jI%2B9GMAi95f7PZ1r5ymxdh4Qj8n7P4lQCEP8nDVX%2Bv0ZD%2BB1o8M72M-iHjjkBPjh-qrkSMQMYEaKMgSJ9EaLft6E-rPsAcziiIBK6nbtfg7nqteu7sfLbHAcAKIAgd-sgafqgaloBMrt%2BvbpztzhqPEjGMoLgZbAwU4swT2MqiZAATPhQSDqGnEAwE%2BN4OKIBLblfsEtoOsCAIkNcIoJLCthEEHiNEQPAUujANELMEJoAXopQb6MgnQMyGIeHpIaWjGBQrhjlKSpLmxEQcgU0gIVuv3ugeXkPulBYeolYRkDYSoaIEQeIJBEQW9LTjmjPo4YzqDvyoBIPuAVrJ4aLkVD4coYkEqPYQVujuES-pDIBEvu4VrDgDEBAMAMoOBCEHsBYAoR2gNrYaoeaBkbwT3noU4eJkYmXGzlIXHBgmNIbmvAkd4RgL4akXUcQSkKnv4TrF9Neg4dkeKHIO-mYqWl0TrOrr0v7kMWxMAMtDdP4WoQ1lmoVlkfofynIGAYsfDIogbisQVGseBBsQ7rsfUaERykcS0WVpDHIJgWYRcWrjcZrtrrrvrobsbqbiAG9IntwMFA0btroREfLlES4XIDQVgZ0Zcc7q7vgQLoQmqKmK3tuH7gHikTMccYiRIfkVxHHMegVNkGeknBembP1jev3HbLGiQXOhkKIELpagceFLYAoIHEYbMQRKYeSWkZcVSaesatwDGGQJzguiybnGyYgZ2FyTUnyQyLIMXiSW0W4Y0ERtAQpmbhvkRrlDgKeEaaMkRhgEVFuBgDKokDEDsGtOQpCWqYGjwZEYIYibEUgPqVxOaWCcaaaQGXfmxtab1rnrShwPhk3kxKMs8XtAyB6fCV6W0XkXqQadoCGUGTgAABqKBBDZmjK85jQxlbBxkuyARlzWA0ApDlzQkPiJm-DJlwapmJSMiX7Yh%2BmGmBmWmmn5mFkWnVY6xlkVlVnWAMDWDIJuncGeKenOFtIIBUAAB8CAAqeSUy3gTgDwbgYAHglgzIzIeOW5CAgg4EC0soEqvAKcpg5gcAgicI1gT5T5AISID8S5q5zYG5dI25xgu5%2B5h5x525Z5F5JEV5FQDKZgFgD5z5z5r5UmH5a5YBm5v5-5nggFQiwFGA55cQYFGA15kFd5MFsF1g8FuOiF6BeSCEqF7gnguRASDAWFOFl5%2BFEFt50FgKJFZFqIL4K5a5up1FO5tFlg9FgqTFoFMBBF7F95nFsF3FKItkfFKIsRglf5wloljFp52FEl4FN5UFMlj5clb5qICgSlZJlgqlaFIlzIDF4luFklbF%2BlxFRlgYFFZ0VFKENFe5dF4hjINAdlLFUlTlslcFxlaI9ISlfUHlBQQl3lIlvl-lWlzFeFQVRFIVL5YVMgblXxDQ20Xl%2B5gECVAVKVjlaVhloVp0nwkVyJMoeVsVBVRVSVOlrFelZVJFpFmVwEkV5lVc%2BVdFE5JcxVDlrVHF5VGVp0QYkVIpIlnl9V-VasjIQ1ulhFo17V8lasblnZM1MValcVF%2BC1S1LVK1Bla1mVpln5i8eSF8fVlgdMzASuh1qVq1XFmVvFn56Z11c1t13sD1TV9ly10lzlFVzqbl6ZkCN1jGLIcgj1pV0FSq1BwhNA8lyCFF0ieS-CN19gR5zgf1gVsN95VGJcvgDg61iln5KNMMGNX1WN7sMNI1BNdgRN7syNk15NYBbimNjGE5dNx1DSjA4hHsSNmV8IkVupHN1NXNmlIF-1R1gN3QAtzIQtp0It5NOVWKz4nNk5Ut2lMtT1DNDACtStSCEV71eS4tu1%2B5E8WtPNct-N7sityNLYotZtjAN13gcgjIjI2tyVw1vNtgpcjGR561KtSFNVDQdSbtHtXtNtTl-tSJj8JNYV7SSl7tLt1gbtVZ0iMdRF-tQiZcjIyNXV5N6ZgKGdpx3tzVetfYjIed1gBdSdb1SF5lpdX10C5d2d0Fud7tddyN51SF01LdFtngbdWduNJV9N1dtd9dgYrNa5mqG58sbti8jGHd95tgb%2BVZ8x8l89SlgqC9ONQ9WKy9Fdut%2BNfYG9cgW9YVe9u9W1SqS9jIK9Y9vtgN69Btl9DA29ZNc9sRT6bt1gh5J9eNE9e0NdcgzIcg29FFNA01f9rdADzIQD49ft8sYDED29Rdc9YdlgcDh9yCgDq9fYRN4DkD19Ttn5NA5luDVl%2BDiDhDoD7t6D19c4u96Z1DwltDSDL9sdqDjDpDgYfdSUC9O1NDCDXDANPDxDTDUm5Da591C9iVeDE5R59D8s4OzAcggE8l4OFFGjCj-9Cdqj7sMgmj2jsjKI7s%2Bj8Dhjz9EjOdajJjWjYVljZlatVGBjKjtjstkj6jpjYVzAmDzYd9dgHjON0twDKDxjGjTjUms9zY7%2B7j1jnj4TyDr9Dj0T2jIdzYbDITSTYTOtETaTUTfjc2ujsDuTSjNjKT3D9jxTMTPmLDn5dMVjlTyTBTqTPjjj2jJtcj2DiTrT%2BTPtdjnd6TJTuOcTeOLTojVT7TNTIzdT8lejSlzAv9FT0zbTQz3jtTvj9TiG39FjCTazHDyjgzldZ9e0OzizPTzYbjRzcVyCMzmzVdFzXT-jWT0mUzxzjzZzIDozuzEoVVTTfTdz%2B5DzGzPzkTlz19WTDg5T6dX1BtGjiV1Twza9KEZ0AS-zZeqNqz8Lh9iLnxqjjGQiMD2jgT2LMM0%2BN1BLyLszqLfYxLmL8lGBFFb%2BC9eLVlBtO6gERLADZ0HVi%2BFFJc7L1LGBjIPLXjzzKEfLyCzLMLOTHLwlXL4rvLiDsrYVgE1zLLlLcIor3Lqr-LzLgLa5F%2BIrCLYrErKLWzIzXsarArSCxr6BwLircVyrpzp9vztr1gZc8l8xFF7ROrLr%2B5Bt1g4hqjn6H99rJlWTVZZr%2BLF%2BYbkr5zdgED8xUbrhrLuLorob7rhTPDEbabzLjd6BcL2bibVrUrBbk5zL%2Bz4hcbnLCbubHT9jVb6bnxoN9bSrjb4bqb1bYVpx-rhzQbngIb5bdL1raLrbpN-rzrZbTbczk7vb6baNSl7bgbc7PbkbzLgTuRnbrr3bSbvzU7-b5jA7675rObm7hb-bjTc9upfJ1L3gNlJ5FbybT79ozI09zqxbjgeSD7CLT7mFh7KD77n6X74aP701-7%2BLgHL747UroHn7vrgTU6MM0HnLsHqjiH4HKIl9-rsRe01LE5LqWH1gHsi8vr%2BzeHaHi9CLxHtLTzb7ZHiDOHHZ-r6ZhHdH9oDHELaTyC5H4HzCQAA

就一个小时前 写了几个查询 同时 导入了一些数据 内存就下不来了

[trueeyu]

这个HeapProfile拿的时间太短了，最好是内存上升前开始，然后内存高峰的时候结束，再获取下这个

[kkkkwe5]

行 那这两天观察着 上升了 之后 我再获取一次

[trueeyu]

可以加我下，有问题随时沟通。

[kkkkwe5]

怎么加啊 我看只能私信啊

[kkkkwe5]

今天做了控制变量发现是 SELECT table A使用UDTF进行数据打散并INSERT table B中，导致使用的内存持续占用不释放 重复执行多次后 内存打满

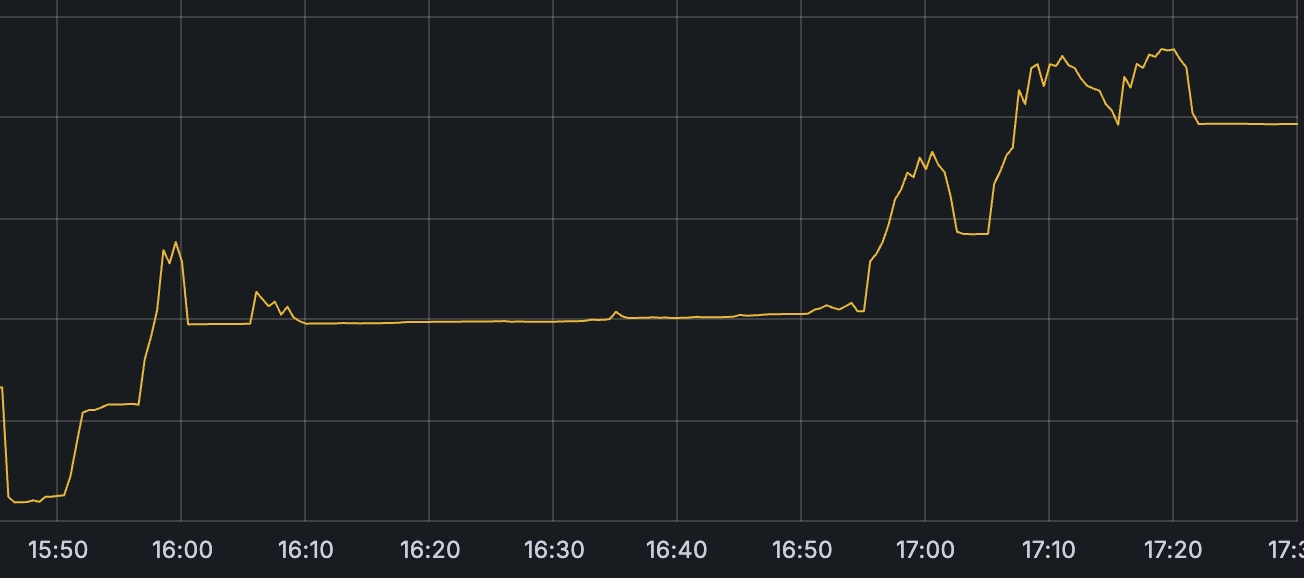

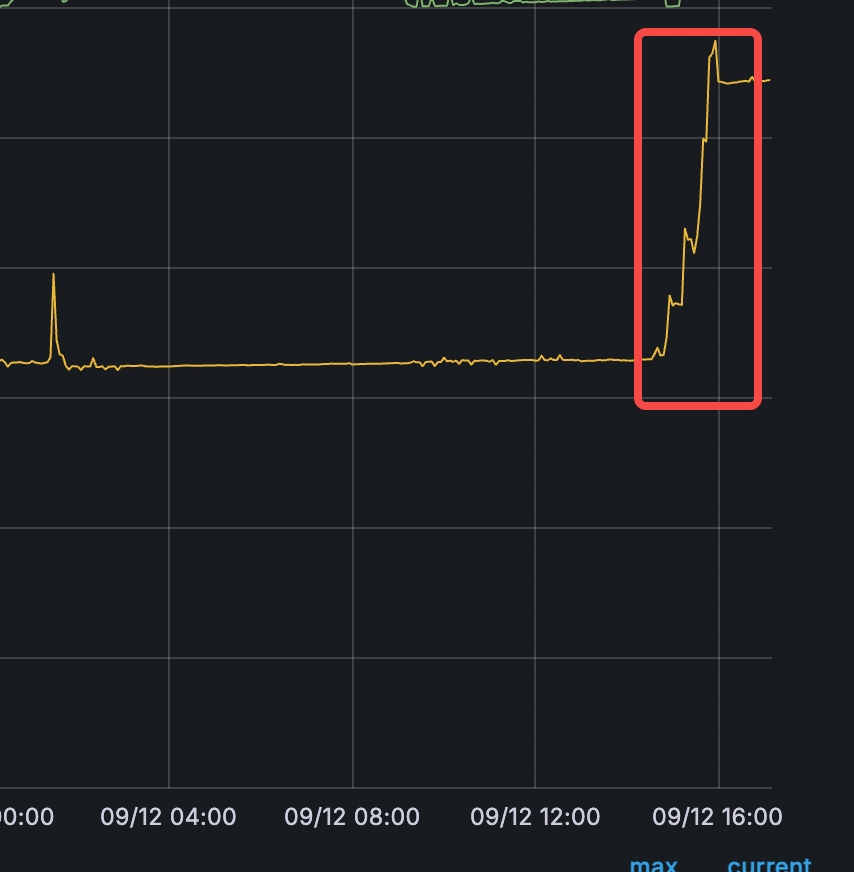

曲线图如下

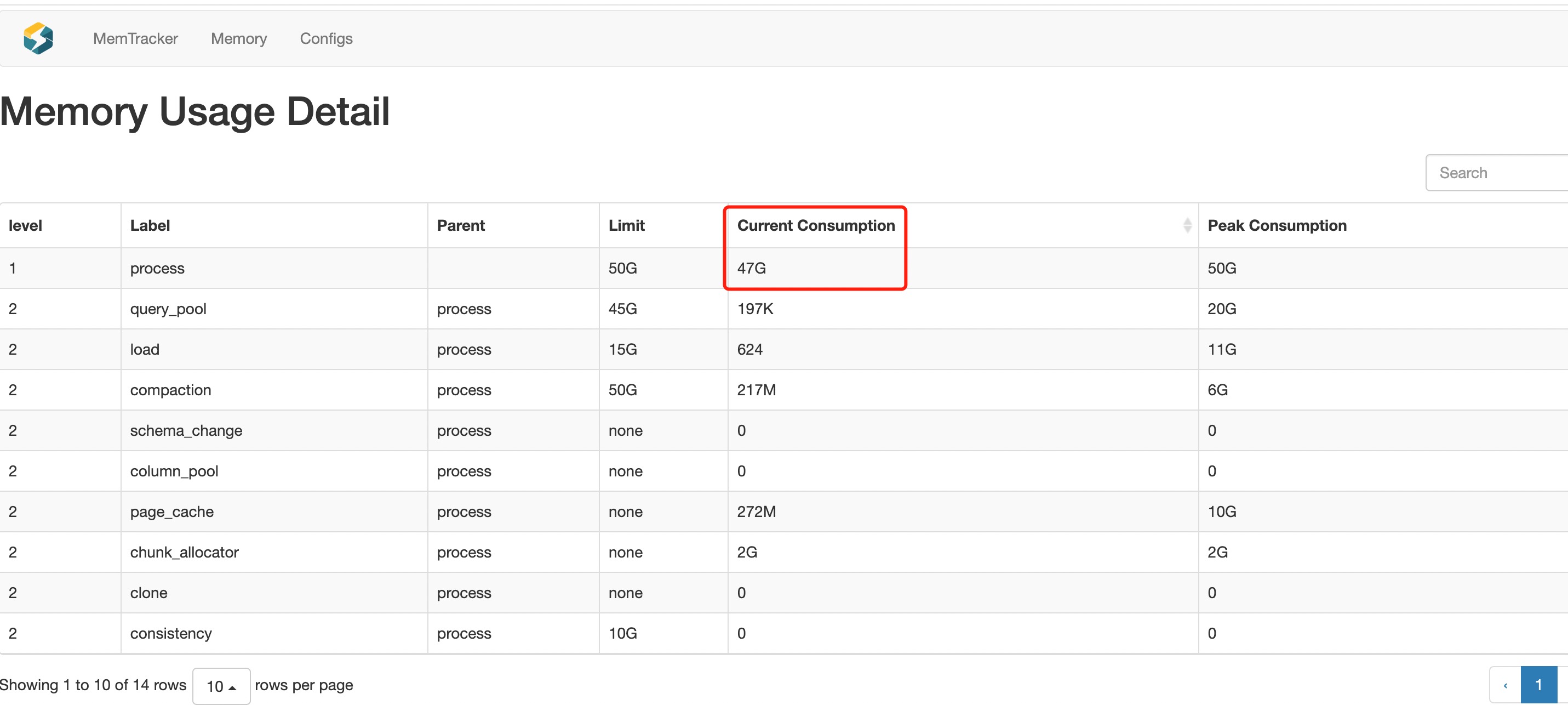

打满后的内存文件如下 可以与昨天的对比一下
https://dreampuf.github.io/GraphvizOnline/?compressed=CYSw5gTghgDgFgAgEQHphQC5RQZSxAJQHsBjAawGcBaAZgDoBGRgFhQCMBTFAGxDZQr4IpSgH1OAbgQNmdAOwIAsgCEkCAN4AoAHZFgHBAG0A7iGAY4AXgAMdGnICsAGjgdwcDDboAmBwF0JTQAZDjAObWAjCjhYDks2IgAPJwAzIm0MChAALzjvZido2MsYbigQDI5EjCcyzm5LVHQsXHxicmp6Jhl2Ll5%2BQSgIYQ7xDgAdbgAVIixuJWUALmlZOUmAMVIAVyztMAR05Zl5SYARYRgYDkjdfQoEUwsEAB5LBFsGBCg2CgAKFQAlGcLldItcwvdHohXu86NYFpMkAFNAA5T6GOocBpIUSiEjcdITbS2eG-EkAUiBwhS0no3gQvwAHABOeSU8YQJCFGJXeJJVLpTI5OKMuHIlH0jHfLGNQbDEQUcbaKZwCAcKDAJUULZXCAANxAFA4ogsao1SpJDIpVKINIYdIZLLZVK5RV5CWSaQyWVyllF1nFNCMmOxcpGlCVKrNwAACkQiNwlaAKDBMCQ4CbVerNcS4Va4ezqbSfI7WXJC66eXEPQLvcK-WLAijmMHpaH8BhM9GLXmyQWbXaHUyyxXucUa16hb7-eKHK36o0ggAtZjrPFEAC2MDVFAoylCFVEOwqYAAwqcQCQMD3SdaObaEHI6IyGQ56MxR27q-zJz6RY3UQANnnGUkA3ABPPEoG4AkSCVJ8X1%2BN86A-F0x3dH9BT-SxmFkfwmwUKUFyQMMFSVIJsmYFJlFgshT03bcOF3EB0iVdctx3RVc1vft7xpBDX3fT8qz5T0sPrGcmxfIjQNIjpyMo6jaPojimKyVjtBIBjOJvfNrELB8BKQoS0K-UTaynf8AybZkQPbIZwy4mMoDCABJAB5JUtNU3dRFTMJxD0cDdL7fSB0fZ9BJQ4Tx0wutpwAtF4Rk%2Bz5Xk7QcFCDdwgwAB1CAQAwDgICVFIKmg4V124LYN20LjLVCgz%2BMi4zotMkSJ3EhLrNRBh0RDWUhDI7QyjIIkVNTK8WIy9Nri2bhiqTIh2MmjBppCu8iyfFskNsBwYowsT4qs8UGElAaSKG9LRvGhioCm9IcFm4B5sWjIsw1E0oAoMgNt4raUNfPaDu-I7LIbHq0SDFLBoc4abqVAA1Yq1pIaCJvutb0imb7fs0u6ryqmrtFESAiB1P6wr4iKdocYH2tisHsMk3qWxhy64euqAxqRlHL3RgmseVXGlSqDgSC2IrKaammgbofaGcOizmcShg53ZuSIxG7miWRiBUeggBxcJiugnG2AWvKCqKkrtBSaroiJ2qKAAAQcBxmWYawvel8LAMB35mHoctFdB5WJNV4CNaurWEe0PWDe4Y3tFN6Zvkt-LCre%2B2dgzLTqudt2PYcRk5GsX3qf9nag%2BdDlK0Z8PutOwiLs1rinugoZ6IL7RM5t0qKkNOAK6LBxexoWQqc5dCw9-CPIYYaTW5j9u0bKCBu%2BJvvs8Hx2JeGHK-JcokGs2h8x9JCf-vrpW56bpsGFs6Oc1EdYtk0oXRBiCIFtt0RFFEBUPURAebcT0jLegiFvD%2BwYCDcyd8TpNm8MlZenMtZBB1plfUl4OCuS3ImbQMAtgWyHqIPUxV1LaCVOoMoG42DoAAMQMAAL5KiILqTARBban3%2Bg%2BegQZfjeG8HQQCcDOrHQhuKbw-U2ywzSrHHWSoiEkMduQiAlCR58LsAyIRIixFxXBizCU51ZEc3kavTuG8Exb2tm9YwtjRDNCgJomkwjEKPzanXGe8CuqINRN4aGqDzFKjwAVPYm9arb1tvYrOjjMDOLAY1cKbiGQeNQl4sy4jDGJXyHZORjkQkYDCWeaxkTbG2zKtoIeLiEDCM%2BL8Y4ojQ4%2BIkUY3weSkAACtjQbmgrBRxHAUhQHmteRJZ9XG9ntLXaemSDEq0htAjp3S-LUnEPdMgRT7on17OM2pkzg76KZvPKRLdTHLO3LaE0V5Eh4jNFLMZvCJmkimSHDJHU5nHKQUvUxvSYKkBqcI55BzmlZPmVIp%2BF0LkpDWeQTZJBjQgHwUqQFqTgVvIbggyw0D5aBhQaYtgEAYBwW0K5QhktFBqXCGEW27ltAog4MYClu5j71R2Y86Q8tUm2BoIcxufiUQ0BkcRAlRKQkiA4KMmMIw1IAFFyEZBqUwOcDTuW8sxUYmgJjhWmmzJGXGhthAUwyLjUQEB34p24WyqeD4lVcrsGq3xkimw0ECfinVn1eljVECkLSlRqiKs5Sq%2B1IKPn31RBPDpbclTrAdnAGYY0qEkxzo7bKG4sAW22Txa1doA4jhDUcsNAr1ZBIKdoClG5zYLVKrGgNO083otvo6jVUcS3DXLemhaMbc44x%2BkqM1iaeHZo5XW6ZN9Z5NsSvYSNK8QlZRylEge2gKq5FrQyetMz3kFv5TQb5xEo3a1AQACS4TkQURsTbQDThmq2WcKk1oeUOpgI7XkboxROyGNAIWmP3XHStEqok4AqHjZNec4DvzxoOmWT612ju8aCz5qIvYdMcsANgSoQlkBADAIIhoMAEA4DAJUABBP5aN7mQfCkwARrJvAOtaYlZgQrQIobQ9oIjaol3EdI5gDg9LjA0REEqKjMHaP5r5Viuk4pmBauYwqVDSp6KaS2AfDI7HwgJJI7BHjJHwApxzBR6mwnfg0bo9kyGQdkNydY4p-eHGMBqc42x7jRU8GlADdRnwpmwVNlwpZjo8ntCnGUK5gh28lSGHxISJUdAtNlF4N9Pw7mRNeYQ82YtpiWNKiCyFpU28csPqg9o4znmxPqoYy2jLVmlTlr-cR4A%2BmrWFY86Jht476PmdOcRTLZaOAVvTrguqKM3oxklqedYSXistdfY29rUnd2yf86xmr-XSVGn1sN0b6x8sGaLEZkzpX31Sa-V1qrvdbHKDTMPElNseMTf261lpZnZx4pO4t3L53Lukptkughq2UZfaIHdkrD34OFocEx7E3Xt4XYwOmL7xUftKlcjd8jjXKNFfu9NtrT2mwOBk6lUtABpRGeAuFEhiUVNZsOrs7ZtRj4HWPHvedRG%2BadaCuJ-owBSrAigoBLupUqCnxpdRZEEIfCo%2BgbnZSwEDqbY6mepYcGzVtXNQFSsRUMcChOODgSmIkbQQQiBgCI5cXgO8qnRFlylsH6W90zoPUSAAqjAZoHBef87et5DchUVka4gJBCXVQrcHdm7jirwrJYgF%2B%2B5OM%2BtoJKNgFcCI3rhAbm9VH40dwSAFRgBgLhAbST%2B2ZNb-lDhOugTYJHghLFK8pCVPdAAjlsEAaoTTcAoOIWiBeGRF5L06ln82CfDQidofDGpPd3KJEwQvz4%2B-SMYLOY7sl7eZTANlBVJNs-qkp-nYmprswUO778f2jI%2B9GMAi95f7PZ1r5ymxdh4Qj8n7P4lQCEP8nDVX%2Bv0ZD%2BB1o8M72M-iHjjkBPjh-qrkSMQMYEaKMgSJ9EaLft6E-rPsAcziiIBK6nbtfg7nqteu7sfLbHAcAKIAgd-sgafqgaloBMrt%2BvbpztzhqPEjGMoLgZbAwU4swT2MqiZAATPhQSDqGnEAwE%2BN4OKIBLblfsEtoOsCAIkNcIoJLCthEEHiNEQPAUujANELMEJoAXopQb6MgnQMyGIeHpIaWjGBQrhjlKSpLmxEQcgU0gIVuv3ugeXkPulBYeolYRkDYSoaIEQeIJBEQW9LTjmjPo4YzqDvyoBIPuAVrJ4aLkVD4coYkEqPYQVujuES-pDIBEvu4VrDgDEBAMAMoOBCEHsBYAoR2gNrYaoeaBkbwT3noU4eJkYmXGzlIXHBgmNIbmvAkd4RgL4akXUcQSkKnv4TrF9Neg4dkeKHIO-mYqWl0TrOrr0v7kMWxMAMtDdP4WoQ1lmoVlkfofynIGAYsfDIogbisQVGseBBsQ7rsfUaERykcS0WVpDHIJgWYRcWrjcZrtrrrvrobsbqbiAG9IntwMFA0btroREfLlES4XIDQVgZ0Zcc7q7vgQLoQmqKmK3tuH7gHikTMccYiRIfkVxHHMegVNkGeknBembP1jev3HbLGiQXOhkKIELpagceFLYAoIHEYbMQRKYeSWkZcVSaesatwDGGQJzguiybnGyYgZ2FyTUnyQyLIMXiSW0W4Y0ERtAQpmbhvkRrlDgKeEaaMkRhgEVFuBgDKokDEDsGtOQpCWqYGjwZEYIYibEUgPqVxOaWCcaaaQGXfmxtab1rnrShwPhk3kxKMs8XtAyB6fCV6W0XkXqQadoCGUGTgAABqKBBDZmjK85jQxlbBxkuyARlzWA0ApDlzQkPiJm-DJlwapmJSMiX7Yh%2BmGmBmWmmn5mFkWnVY6xlkVlVnWAMDWDIJuncGeKenOFtIIBUAAB8CAAqeSUy3gTgDwbgYAHglgzIzIeOW5CAgg4EC0soEqvAKcpg5gcAgicI1gT5T5AISID8S5q5zYG5dI25xgu5%2B5h5x525Z5F5JEV5FQDKZgFgD5z5z5r5UmH5a5YBm5v5-5nggFQiwFGA55cQYFGA15kFd5MFsF1g8FuOiF6BeSCEqF7gnguRASDAWFOFl5%2BFEFt50FgKJFZFqIL4K5a5up1FO5tFlg9FgqTFoFMBBF7F95nFsF3FKItkfFKIsRglf5wloljFp52FEl4FN5UFMlj5clb5qICgSlZJlgqlaFIlzIDF4luFklbF%2BlxFRlgYFFZ0VFKENFe5dF4hjINAdlLFUlTlslcFxlaI9ISlfUHlBQQl3lIlvl-lWlzFeFQVRFIVL5YVMgblXxDQ20Xl%2B5gECVAVKVjlaVhloVp0nwkVyJMoeVsVBVRVSVOlrFelZVJFpFmVwEkV5lVc%2BVdFE5JcxVDlrVHF5VGVp0QYkVIpIlnl9V-VasjIQ1ulhFo17V8lasblnZM1MValcVF%2BC1S1LVK1Bla1mVpln5i8eSF8fVlgdMzASuh1qVq1XFmVvFn56Z11c1t13sD1TV9ly10lzlFVzqbl6ZkCN1jGLIcgj1pV0FSq1BwhNA8lyCFF0ieS-CN19gR5zgf1gVsN95VGJcvgDg61iln5KNMMGNX1WN7sMNI1BNdgRN7syNk15NYBbimNjGE5dNx1DSjA4hHsSNmV8IkVupHN1NXNmlIF-1R1gN3QAtzIQtp0It5NOVWKz4nNk5Ut2lMtT1DNDACtStSCEV71eS4tu1%2B5E8WtPNct-N7sityNLYotZtjAN13gcgjIjI2tyVw1vNtgpcjGR561KtSFNVDQdSbtHtXtNtTl-tSJj8JNYV7SSl7tLt1gbtVZ0iMdRF-tQiZcjIyNXV5N6ZgKGdpx3tzVetfYjIed1gBdSdb1SF5lpdX10C5d2d0Fud7tddyN51SF01LdFtngbdWduNJV9N1dtd9dgYrNa5mqG58sbti8jGHd95tgb%2BVZ8x8l89SlgqC9ONQ9WKy9Fdut%2BNfYG9cgW9YVe9u9W1SqS9jIK9Y9vtgN69Btl9DA29ZNc9sRT6bt1gh5J9eNE9e0NdcgzIcg29FFNA01f9rdADzIQD49ft8sYDED29Rdc9YdlgcDh9yCgDq9fYRN4DkD19Ttn5NA5luDVl%2BDiDhDoD7t6D19c4u96Z1DwltDSDL9sdqDjDpDgYfdSUC9O1NDCDXDANPDxDTDUm5Da591C9iVeDE5R59D8s4OzAcggE8l4OFFGjCj-9Cdqj7sMgmj2jsjKI7s%2Bj8Dhjz9EjOdajJjWjYVljZlatVGBjKjtjstkj6jpjYVzAmDzYd9dgHjON0twDKDxjGjTjUms9zY7%2B7j1jnj4TyDr9Dj0T2jIdzYbDITSTYTOtETaTUTfjc2ujsDuTSjNjKT3D9jxTMTPmLDn5dMVjlTyTBTqTPjjj2jJtcj2DiTrT%2BTPtdjnd6TJTuOcTeOLTojVT7TNTIzdT8lejSlzAv9FT0zbTQz3jtTvj9TiG39FjCTazHDyjgzldZ9e0OzizPTzYbjRzcVyCMzmzVdFzXT-jWT0mUzxzjzZzIDozuzEoVVTTfTdz%2B5DzGzPzkTlz19WTDg5T6dX1BtGjiV1Twza9KEZ0AS-zZeqNqz8Lh9iLnxqjjGQiMD2jgT2LMM0%2BN1BLyLszqLfYxLmL8lGBFFb%2BC9eLVlBtO6gERLADZ0HVi%2BFFJc7L1LGBjIPLXjzzKEfLyCzLMLOTHLwlXL4rvLiDsrYVgE1zLLlLcIor3Lqr-LzLgLa5F%2BIrCLYrErKLWzIzXsarArSCxr6BwLircVyrpzp9vztr1gZc8l8xFF7ROrLr%2B5Bt1g4hqjn6H99rJlWTVZZr%2BLF%2BYbkr5zdgED8xUbrhrLuLorob7rhTPDEbabzLjd6BcL2bibVrUrBbk5zL%2Bz4hcbnLCbubHT9jVb6bnxoN9bSrjb4bqb1bYVpx-rhzQbngIb5bdL1raLrbpN-rzrZbTbczk7vb6baNSl7bgbc7PbkbzLgTuRnbrr3bSbvzU7-b5jA7675rObm7hb-bjTc9upfJ1L3gNlJ5FbybT79ozI09zqxbjgeSD7CLT7mFh7KD77n6X74aP701-7%2BLgHL747UroHn7vrgTU6MM0HnLsHqjiH4HKIl9-rsRe01LE5LqWH1gHsi8vr%2BzeHaHi9CLxHtLTzb7ZHiDOHHZ-r6ZhHdH9oDHELaTyC5H4HzCQAA#digraph%20"%2Fdata%2FStarRocks-3.1.14%2Fbe%2Flib%2Fstarrocks_be%3B%2012.4%20MB"%20{ node%20[width%3D0.375%2Cheight%3D0.25]%3B Legend%20[shape%3Dbox%2Cfontsize%3D24%2Cshape%3Dplaintext%2Clabel%3D"%2Fdata%2FStarRocks-3.1.14%2Fbe%2Flib%2Fstarrocks_be\lTotal%20MB%3A%2012.4\lFocusing%20on%3A%2012.4\lDropped%20nodes%20with%20<%3D%200.1%20abs(MB)\lDropped%20edges%20with%20<%3D%200.0%20MB\l"]%3B N1%20[label%3D"__clone\n0.0%20(0.0%)\rof%2011.4%20(92.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N2%20[label%3D"start_thread\n0.0%20(0.0%)\rof%2011.4%20(92.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N3%20[label%3D"starrocks\nThread\nsupervise_thread\n0.0%20(0.0%)\rof%208.6%20(69.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N4%20[label%3D"starrocks\nThreadPool\ndispatch_thread\n0.0%20(0.0%)\rof%208.6%20(69.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N5%20[label%3D"starrocks\nScalarColumnWriter\nwrite_data\n0.0%20(0.0%)\rof%207.6%20(61.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N6%20[label%3D"starrocks\nSegmentWriter\nfinalize\n0.0%20(0.0%)\rof%207.6%20(61.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N7%20[label%3D"starrocks\nSegmentWriter\nfinalize_columns\n0.0%20(0.0%)\rof%207.6%20(61.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N8%20[label%3D"starrocks\nStringColumnWriter\nwrite_data\n0.0%20(0.0%)\rof%207.6%20(61.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N9%20[label%3D"starrocks\nScalarColumnWriter\n_write_data_page\n0.0%20(0.0%)\rof%206.9%20(55.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N10%20[label%3D"starrocks\nlake\nCompactionScheduler\ndo_compaction\n0.0%20(0.0%)\rof%206.9%20(55.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N11%20[label%3D"starrocks\nlake\nCompactionScheduler\nthread_task\n0.0%20(0.0%)\rof%206.9%20(55.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N12%20[label%3D"starrocks\nlake\nHorizontalCompactionTask\nexecute\n0.0%20(0.0%)\rof%206.9%20(55.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N13%20[label%3D"starrocks\nlake\nHorizontalGeneralTabletWriter\nflush_segment_writer\n0.0%20(0.0%)\rof%206.9%20(55.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N14%20[label%3D"starrocks\nlake\nHorizontalGeneralTabletWriter\nwrite\n0.0%20(0.0%)\rof%206.9%20(55.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N15%20[label%3D"std\n__cxx11\nbasic_string\n_M_construct\n[clone\n.isra.0]\n6.5%20(52.2%)\r"%2Cshape%3Dbox%2Cfontsize%3D44.1]%3B N16%20[label%3D"staros\nstarlet\nfslib\nS3OutputStream\nmultipart_upload\n0.0%20(0.0%)\rof%206.0%20(48.2%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N17%20[label%3D"staros\nstarlet\nfslib\nS3OutputStream\nwrite\n0.0%20(0.0%)\rof%206.0%20(48.2%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N18%20[label%3D"staros\nstarlet\nfslib\nStarCacheOutputStream\nwrite\n0.0%20(0.0%)\rof%206.0%20(48.2%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N19%20[label%3D"starrocks\nOutputStreamAdapter\nappendv\n0.0%20(0.0%)\rof%206.0%20(48.2%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N20%20[label%3D"starrocks\nPageIO\nwrite_page\n0.0%20(0.0%)\rof%206.0%20(48.2%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N21%20[label%3D"starrocks\nStarletOutputStream\nwrite\n0.0%20(0.0%)\rof%206.0%20(48.2%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N22%20[label%3D"execute_native_thread_routine\n0.0%20(0.0%)\rof%202.8%20(22.6%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N23%20[label%3D"staros\nstarlet\nfslib\nCacheEvictor\nevict_cache_item\n0.0%20(0.0%)\rof%202.8%20(22.6%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N24%20[label%3D"staros\nstarlet\nfslib\nCacheManager\ncache_evict\n0.0%20(0.0%)\rof%202.8%20(22.6%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N25%20[label%3D"staros\nstarlet\nfslib\nPeriodicTask\nthread_run\n0.0%20(0.0%)\rof%202.8%20(22.6%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N26%20[label%3D"staros\nstarlet\nfslib\nposixfs\nPosixFileSystem\nlist_dir\n0.0%20(0.0%)\rof%202.3%20(18.4%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N27%20[label%3D"staros\nstarlet\nfslib\nposixfs\nlist_dir_internal\n0.0%20(0.0%)\rof%202.3%20(18.4%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N28%20[label%3D"std\n_Function_handler\n_M_invoke\n0.0%20(0.0%)\rof%201.8%20(14.6%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N29%20[label%3D"staros\nstarlet\nfslib\nCacheEvictor\nevict_cache_item\n{lambda%232}\noperator\n[clone\n.isra.0]\n0.0%20(0.0%)\rof%201.5%20(12.1%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N30%20[label%3D"staros\nstarlet\nfslib\nSharedObjectMgr\nput\n1.0%20(8.0%)\rof%201.5%20(12.1%)\r"%2Cshape%3Dbox%2Cfontsize%3D22.2]%3B N31%20[label%3D"staros\nstarlet\nfslib\nposixfs\nPosixFileSystem\nopen\n0.0%20(0.0%)\rof%201.5%20(12.1%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N32%20[label%3D"std\nvector\n_M_realloc_insert\n1.3%20(10.6%)\r"%2Cshape%3Dbox%2Cfontsize%3D24.3]%3B N33%20[label%3D"Aws\nS3\nS3Client\nDeleteObjects\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N34%20[label%3D"__pthread_once_slow\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N35%20[label%3D"staros\nstarlet\nfslib\nCacheFileSystem\ndelete_files\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N36%20[label%3D"staros\nstarlet\nfslib\nCacheFileSystemImpl\ndelete_files\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N37%20[label%3D"staros\nstarlet\nfslib\nS3FileSystem\ndelete_files\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N38%20[label%3D"staros\nstarlet\nfslib\nS3FileSystem\ndelete_files\n[clone\n.localalias]\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N39%20[label%3D"starrocks\nStarletFileSystem\ndelete_files\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N40%20[label%3D"starrocks\nlake\n\ndo_delete_files\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N41%20[label%3D"starrocks\nlake\ndelete_files\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N42%20[label%3D"std\n__future_base\n_State_baseV2\n_M_do_set\n0.0%20(0.0%)\rof%201.0%20(8.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N43%20[label%3D"brpc\nInputMessenger\nOnNewMessages\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N44%20[label%3D"brpc\nProcessInputMessage\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N45%20[label%3D"brpc\nSocket\nProcessEvent\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N46%20[label%3D"brpc\npolicy\nProcessRpcRequest\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N47%20[label%3D"bthread\nTaskGroup\ntask_runner\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N48%20[label%3D"bthread_make_fcontext\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N49%20[label%3D"starrocks\nPInternalServiceImplBase\nexecute_command\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N50%20[label%3D"starrocks\nexecute_command\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N51%20[label%3D"starrocks\nexecute_script\n0.0%20(0.0%)\rof%201.0%20(8.0%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N52%20[label%3D"starrocks\nIndexPageBuilder\nadd\n0.0%20(0.0%)\rof%200.9%20(7.1%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N53%20[label%3D"starrocks\nOrdinalIndexWriter\nappend_entry\n0.0%20(0.0%)\rof%200.9%20(7.1%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N54%20[label%3D"starrocks\nfaststring\nGrowToAtLeast\n0.9%20(7.1%)\r"%2Cshape%3Dbox%2Cfontsize%3D21.3]%3B N55%20[label%3D"LZ4F_compressBegin_usingCDict\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N56%20[label%3D"my_calloc\n0.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D20.0]%3B N57%20[label%3D"starrocks\nFlushToken\n_flush_memtable\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N58%20[label%3D"starrocks\nLz4fBlockCompression\n_compress\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N59%20[label%3D"starrocks\nLz4fBlockCompression\ncompress\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N60%20[label%3D"starrocks\nMemTable\nflush\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N61%20[label%3D"starrocks\nMemtableFlushTask\nrun\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N62%20[label%3D"starrocks\nPageIO\ncompress_page_body\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N63%20[label%3D"starrocks\nlake\nHorizontalGeneralTabletWriter\nflush\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N64%20[label%3D"starrocks\nlake\nHorizontalPkTabletWriter\nflush_segment_writer\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N65%20[label%3D"starrocks\nlake\nTabletWriterSink\nflush_chunk\n0.0%20(0.0%)\rof%200.7%20(5.7%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N66%20[label%3D"Aws\nClient\nAWSClient\nAttemptExhaustively\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N67%20[label%3D"Aws\nClient\nAWSClient\nAttemptOneRequest\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N68%20[label%3D"Aws\nClient\nAWSXMLClient\nMakeRequest%4067003f0\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N69%20[label%3D"Aws\nClient\nAWSXMLClient\nMakeRequest%406701020\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N70%20[label%3D"Aws\nHttp\nCurlHttpClient\nMakeRequest\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N71%20[label%3D"Aws\nS3\nS3Client\nDeleteObjects\n{lambda%231}\noperator\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N72%20[label%3D"Curl_buffer_send\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N73%20[label%3D"Curl_get_upload_buffer\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N74%20[label%3D"Curl_http\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N75%20[label%3D"Curl_http_bodysend\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N76%20[label%3D"curl_easy_perform\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N77%20[label%3D"curl_multi_perform\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N78%20[label%3D"je_malloc_default\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N79%20[label%3D"je_prof_backtrace\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N80%20[label%3D"je_prof_tctx_create\n0.0%20(0.0%)\rof%200.5%20(4.3%)\r"%2Cshape%3Dbox%2Cfontsize%3D8.0]%3B N1%20->%20N2%20[label%3D11.4%2C%20weight%3D90236%2C%20style%3D"setlinewidth(2.000000)"]%3B N3%20->%20N4%20[label%3D8.6%2C%20weight%3D74034%2C%20style%3D"setlinewidth(2.000000)"]%3B N2%20->%20N3%20[label%3D8.6%2C%20weight%3D74034%2C%20style%3D"setlinewidth(2.000000)"]%3B N8%20->%20N5%20[label%3D7.6%2C%20weight%3D67716%2C%20style%3D"setlinewidth(2.000000)"]%3B N6%20->%20N7%20[label%3D7.6%2C%20weight%3D67716%2C%20style%3D"setlinewidth(2.000000)"]%3B N7%20->%20N8%20[label%3D7.6%2C%20weight%3D67716%2C%20style%3D"setlinewidth(2.000000)"]%3B N4%20->%20N11%20[label%3D6.9%2C%20weight%3D63203%2C%20style%3D"setlinewidth(2.000000)"]%3B N13%20->%20N6%20[label%3D6.9%2C%20weight%3D63203%2C%20style%3D"setlinewidth(2.000000)"]%3B N5%20->%20N9%20[label%3D6.9%2C%20weight%3D63203%2C%20style%3D"setlinewidth(2.000000)"]%3B N11%20->%20N10%20[label%3D6.9%2C%20weight%3D63203%2C%20style%3D"setlinewidth(2.000000)"]%3B N12%20->%20N14%20[label%3D6.9%2C%20weight%3D63203%2C%20style%3D"setlinewidth(2.000000)"]%3B N14%20->%20N13%20[label%3D6.9%2C%20weight%3D63203%2C%20style%3D"setlinewidth(2.000000)"]%3B N10%20->%20N12%20[label%3D6.9%2C%20weight%3D63203%2C%20style%3D"setlinewidth(2.000000)"]%3B N17%20->%20N16%20[label%3D6.0%2C%20weight%3D57428%2C%20style%3D"setlinewidth(2.000000)"]%3B N21%20->%20N18%20[label%3D6.0%2C%20weight%3D57428%2C%20style%3D"setlinewidth(2.000000)"]%3B N16%20->%20N15%20[label%3D6.0%2C%20weight%3D57428%2C%20style%3D"setlinewidth(2.000000)"]%3B N18%20->%20N17%20[label%3D6.0%2C%20weight%3D57428%2C%20style%3D"setlinewidth(2.000000)"]%3B N20%20->%20N19%20[label%3D6.0%2C%20weight%3D57428%2C%20style%3D"setlinewidth(2.000000)"]%3B N9%20->%20N20%20[label%3D6.0%2C%20weight%3D57428%2C%20style%3D"setlinewidth(2.000000)"]%3B N19%20->%20N21%20[label%3D6.0%2C%20weight%3D57428%2C%20style%3D"setlinewidth(2.000000)"]%3B N26%20->%20N27%20[label%3D3.1%2C%20weight%3D35941%2C%20style%3D"setlinewidth(1.481250)"]%3B N22%20->%20N25%20[label%3D2.8%2C%20weight%3D33834%2C%20style%3D"setlinewidth(1.358817)"]%3B N24%20->%20N23%20[label%3D2.8%2C%20weight%3D33834%2C%20style%3D"setlinewidth(1.358817)"]%3B N2%20->%20N22%20[label%3D2.8%2C%20weight%3D33834%2C%20style%3D"setlinewidth(1.358817)"]%3B N25%20->%20N24%20[label%3D2.8%2C%20weight%3D33834%2C%20style%3D"setlinewidth(1.358817)"]%3B N23%20->%20N26%20[label%3D2.3%2C%20weight%3D29225%2C%20style%3D"setlinewidth(1.102309)"]%3B N27%20->%20N28%20[label%3D1.6%2C%20weight%3D22483%2C%20style%3D"setlinewidth(0.757881)"]%3B N31%20->%20N30%20[label%3D1.5%2C%20weight%3D21762%2C%20style%3D"setlinewidth(0.723369)"]%3B N29%20->%20N31%20[label%3D1.5%2C%20weight%3D21762%2C%20style%3D"setlinewidth(0.723369)"]%3B N27%20->%20N29%20[label%3D1.5%2C%20weight%3D21762%2C%20style%3D"setlinewidth(0.723369)"]%3B N36%20->%20N37%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N28%20->%20N34%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N39%20->%20N35%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N35%20->%20N36%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N4%20->%20N28%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N28%20->%20N41%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N37%20->%20N38%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N38%20->%20N33%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N42%20->%20N28%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N34%20->%20N42%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N40%20->%20N39%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N41%20->%20N40%20[label%3D1.0%2C%20weight%3D16749%2C%20style%3D"setlinewidth(0.497637)"]%3B N50%20->%20N51%20[label%3D1.0%2C%20weight%3D16385%2C%20style%3D"setlinewidth(0.482288)"]%3B N43%20->%20N44%20[label%3D1.0%2C%20weight%3D16385%2C%20style%3D"setlinewidth(0.482288)"]%3B N44%20->%20N46%20[label%3D1.0%2C%20weight%3D16385%2C%20style%3D"setlinewidth(0.482288)"]%3B N48%20->%20N47%20[label%3D1.0%2C%20weight%3D16385%2C%20style%3D"setlinewidth(0.482288)"]%3B N46%20->%20N49%20[label%3D1.0%2C%20weight%3D16385%2C%20style%3D"setlinewidth(0.482288)"]%3B N47%20->%20N45%20[label%3D1.0%2C%20weight%3D16385%2C%20style%3D"setlinewidth(0.482288)"]%3B N49%20->%20N50%20[label%3D1.0%2C%20weight%3D16385%2C%20style%3D"setlinewidth(0.482288)"]%3B N45%20->%20N43%20[label%3D1.0%2C%20weight%3D16385%2C%20style%3D"setlinewidth(0.482288)"]%3B N53%20->%20N52%20[label%3D0.9%2C%20weight%3D14983%2C%20style%3D"setlinewidth(0.424422)"]%3B N52%20->%20N54%20[label%3D0.9%2C%20weight%3D14983%2C%20style%3D"setlinewidth(0.424422)"]%3B N9%20->%20N53%20[label%3D0.9%2C%20weight%3D14983%2C%20style%3D"setlinewidth(0.424422)"]%3B N28%20->%20N26%20[label%3D0.8%2C%20weight%3D13840%2C%20style%3D"setlinewidth(0.378940)"]%3B N28%20->%20N32%20[label%3D0.8%2C%20weight%3D13840%2C%20style%3D"setlinewidth(0.378940)"]%3B N65%20->%20N63%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N4%20->%20N61%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N61%20->%20N57%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N57%20->%20N60%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N55%20->%20N56%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N60%20->%20N65%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N59%20->%20N58%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N63%20->%20N64%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N62%20->%20N59%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N64%20->%20N6%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N58%20->%20N55%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N5%20->%20N62%20[label%3D0.7%2C%20weight%3D12922%2C%20style%3D"setlinewidth(0.343534)"]%3B N78%20->%20N80%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N28%20->%20N70%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N71%20->%20N69%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N66%20->%20N67%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N68%20->%20N66%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N69%20->%20N68%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N23%20->%20N32%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N75%20->%20N72%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N28%20->%20N71%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N76%20->%20N77%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N70%20->%20N76%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N74%20->%20N75%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N72%20->%20N73%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N80%20->%20N79%20[label%3D0.5%2C%20weight%3D10532%2C%20style%3D"setlinewidth(0.256508)"]%3B N30%20->%20N15%20[label%3D0.5%2C%20weight%3D10086%2C%20style%3D"setlinewidth(0.241125)"]%3B }

[trueeyu]

@kkkkwe5

le A使用UDT

那估计UDTF实现的有问题，导致的内存泄漏，可以将BE使用的jdk换成jdk8，并且配置下Jvm内存上限试试

[kkkkwe5]

我们是存算分离啊 用的 jdk11 能确定是哪的问题吗 换成jdk8就可以？

[suguangqiang]

是的,下不来了.

[trueeyu]

当前CN/BE对于JDK11还没适配好，而且默认应该没设置JVM使用的内存上限，JVM自身应该默认是机器内存的1/4吧。

[kkkkwe5]

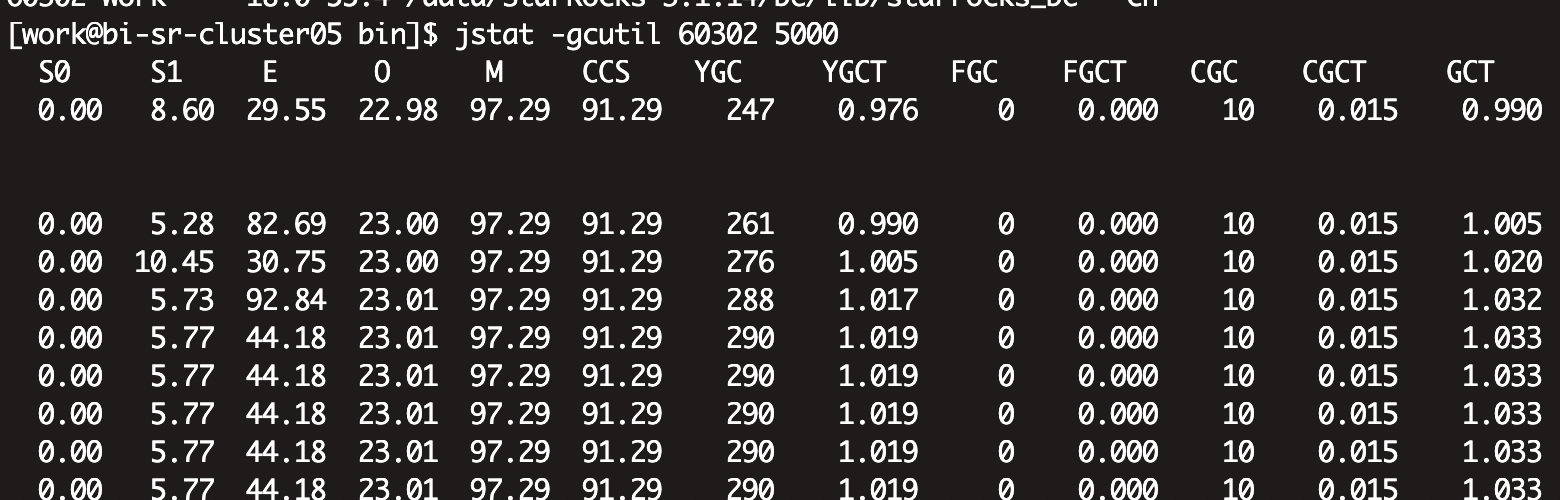

使用udf时看 jvm内存情况 看来java分配的对象 都可以回收啊

会不会是C++调用的时候 处理 有内存泄露呢？
